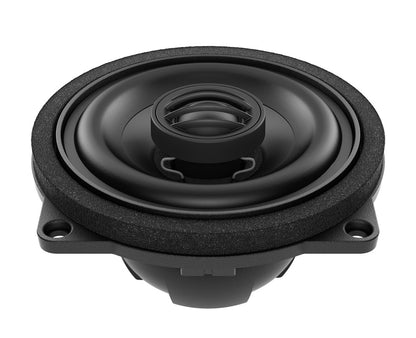

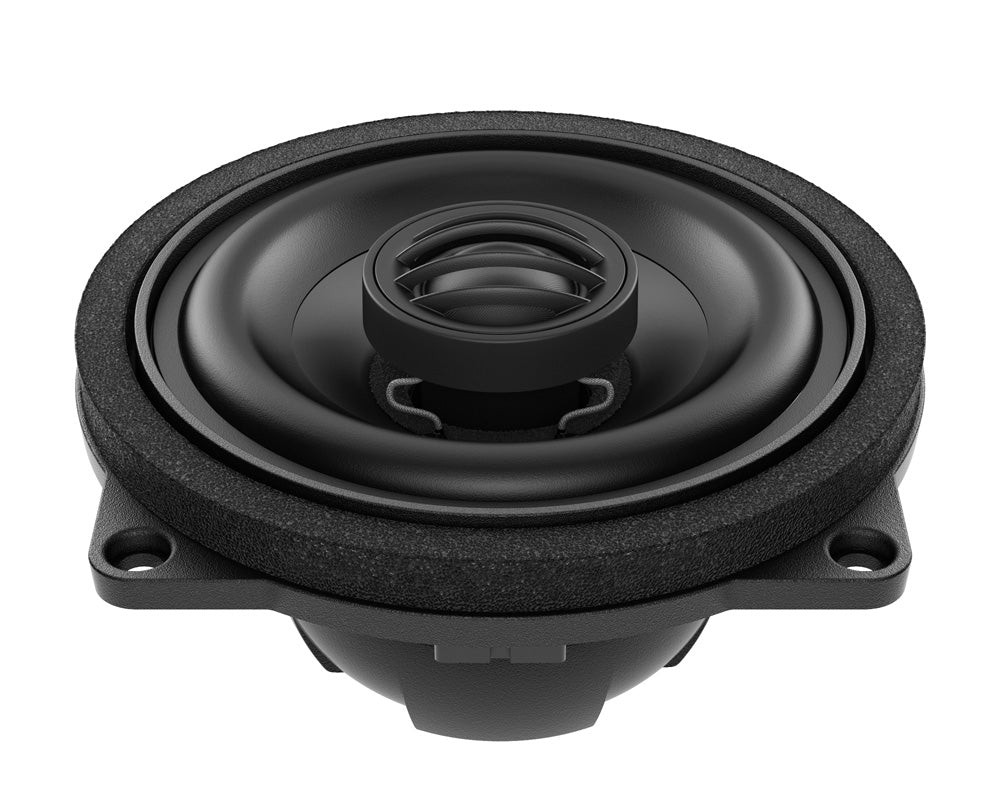

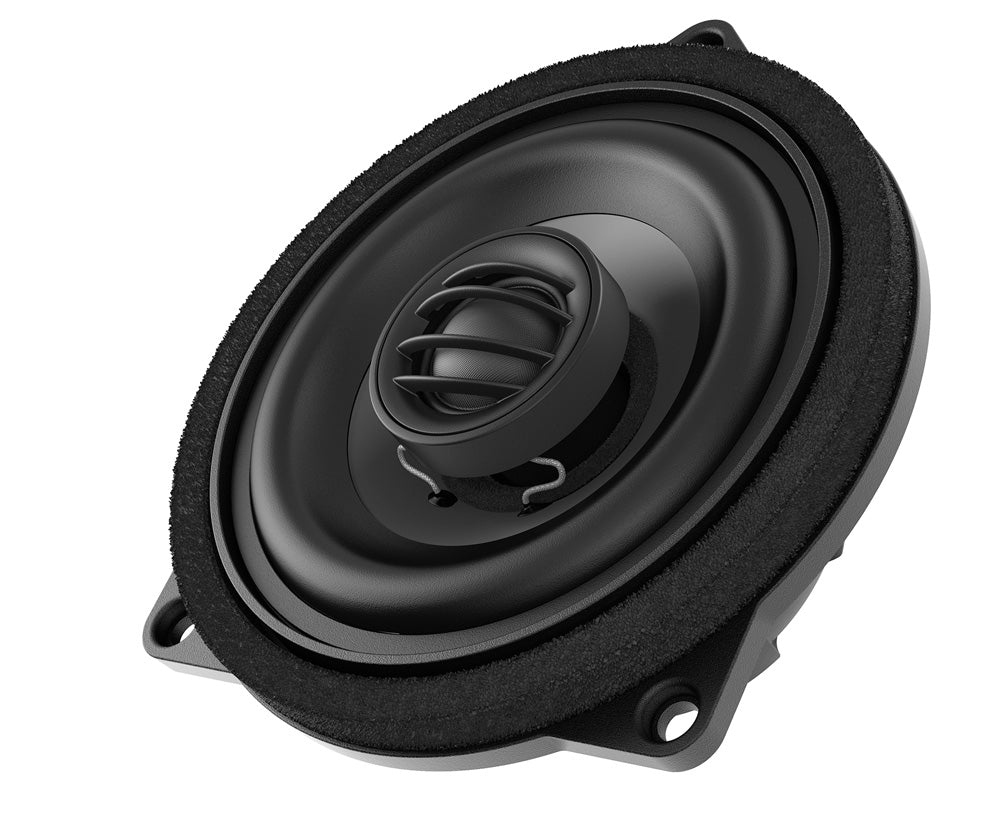

The APBMW coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or rear of the system. The 100 mm (4 in.) APBMW X4E, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and color-free mid-range frequencies.

Technical Specs LF

• Woofer Size - 100 mm
• Impedance - 4 Ohm
• Power Handling - 80W Peak
• Power Handling - 40W Continuous
• Sensitivity - 88 dB
• Frequency Response - 100 ÷ 22k
• Voice Coil Diameter - 25 mm (0.79 in)
• Magnet Size - 50 x 29 x 3
• Xmax - 0.5 mm (0.98 in)

Technical Specs HF

• Tweeter Size - 24 mm (0.94 in)
• Voice Coil Diameter - 20 mm (0.79 in)

Electric-acoustic Specs

• Re - 3.4 Ohm
• Fs - 100 Hz
• Mms - 5.8 g (0.2 oz)
• Cms - 0.5
• Bl - 5.4
• Qms - 6.2
• Qes - 0,4
• Qts - 0.38
• Vas - 1.8 l (0.06 ft)
• LE - 0.32 mH

General

• Weight - 0.5 kg
