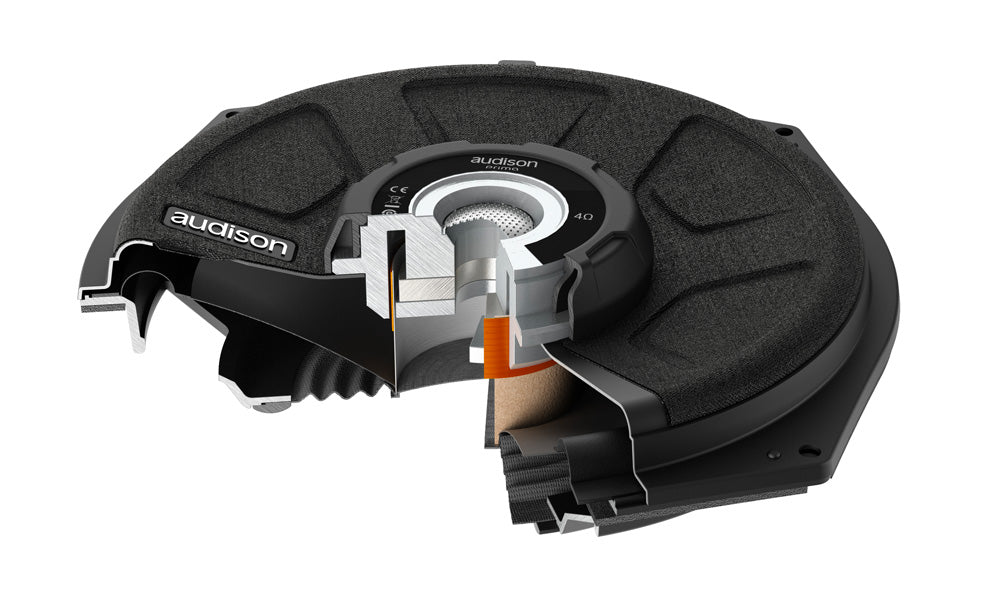

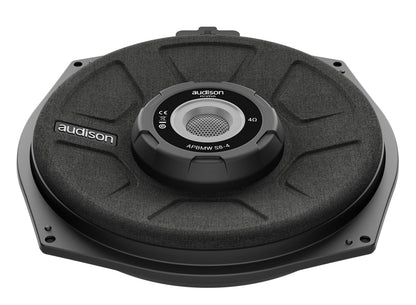

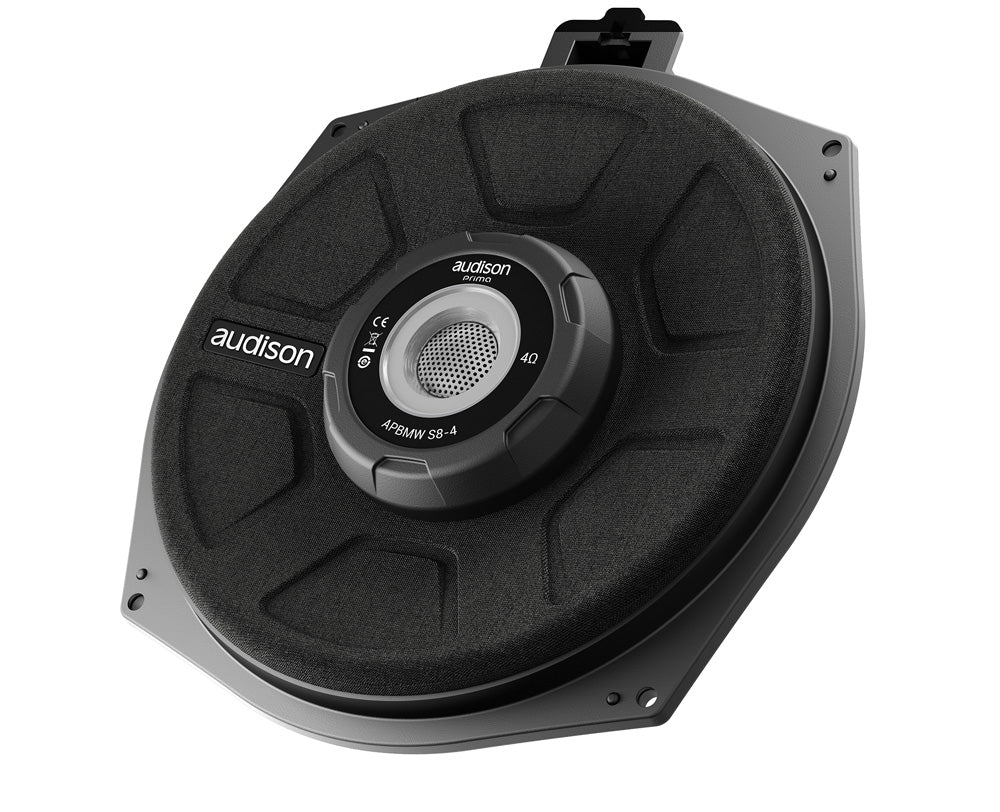

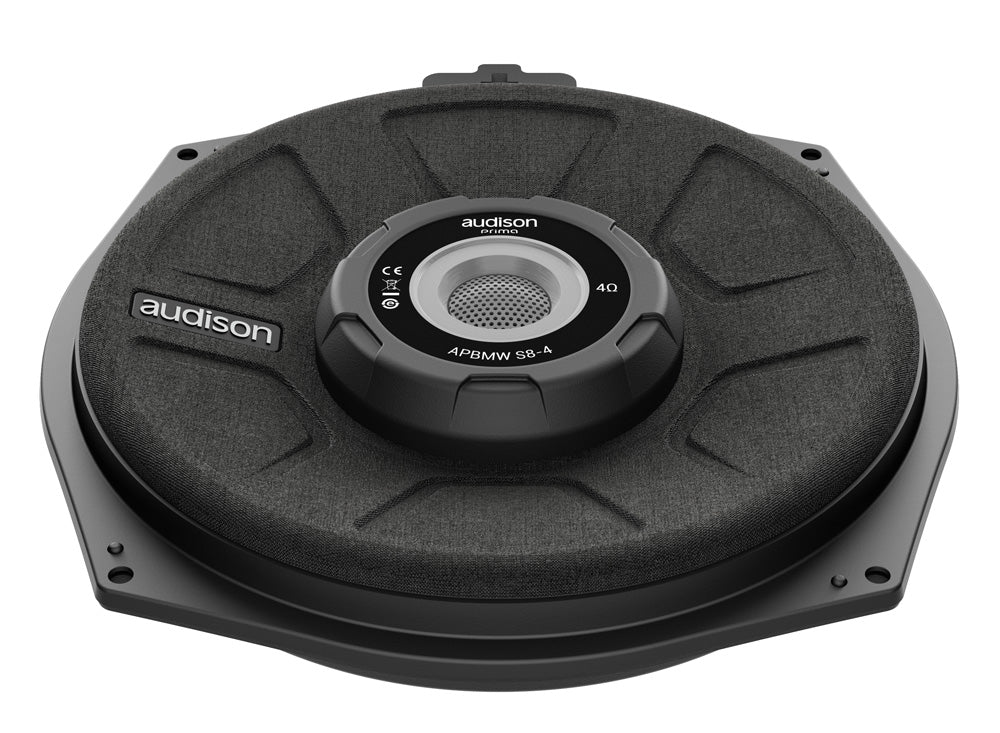

The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.

Technical Specs

• Nominal diameter - 200 mm (8 in)
• Impedance - 2 Ohm
• Power Handling - 300 W Peak
• Power Handling - 150W Continuous
• Sensitivity - 91 dB
• Frequency Response - 40-500 Hz
• Voice Coil Ø - 50 mm
• Chassis Material - PLASTIC
• Magnet Material - NEODYMIUM
• Magnet size D x d x h - 48x18x7 mm mm (in.)
• Voice Coil Material - COPPER
• Former Material - ALUMINIUM
• Cone Material - PRESSED PAPER CONE
• Surround Material - RUBBER
• Xmax - 7 mm (0.28 in)
• Xmech - 10 mm (0.39 in)
• Driver Displacement Volume - 1.2 l (0.042 ft)

Electric-acoustic Specs

• D - 198.6 cm² (30.783 in²)
• Re - 2.2 Ohm
• Fs - 40 Hz
• Le - 0.3 mH
• Vas - 22.3 l (0.788 ft)
• Mms - 42 g (1.482 oz)
• Cms - 0.4 mm/N
• BL - 5.6 T•m
• Qts - 0.5
• Qes - 0,67
• Qms - 2.1
• Reference Efficiency - 0.18

General

• Weight - 1.21 kg
