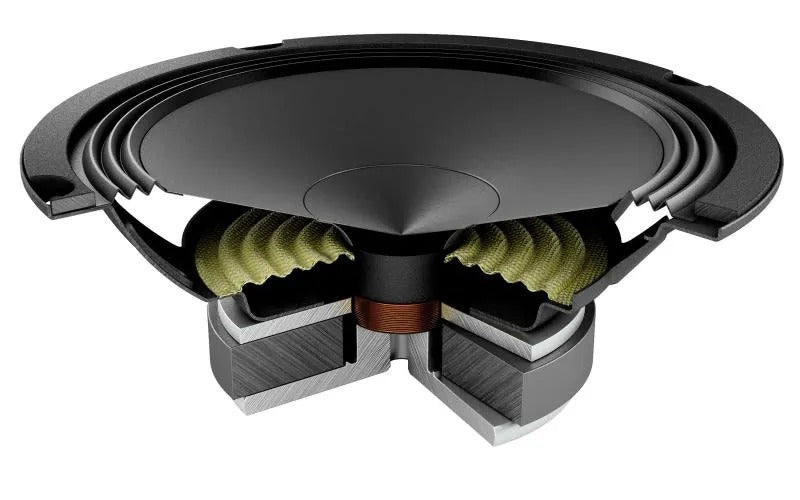

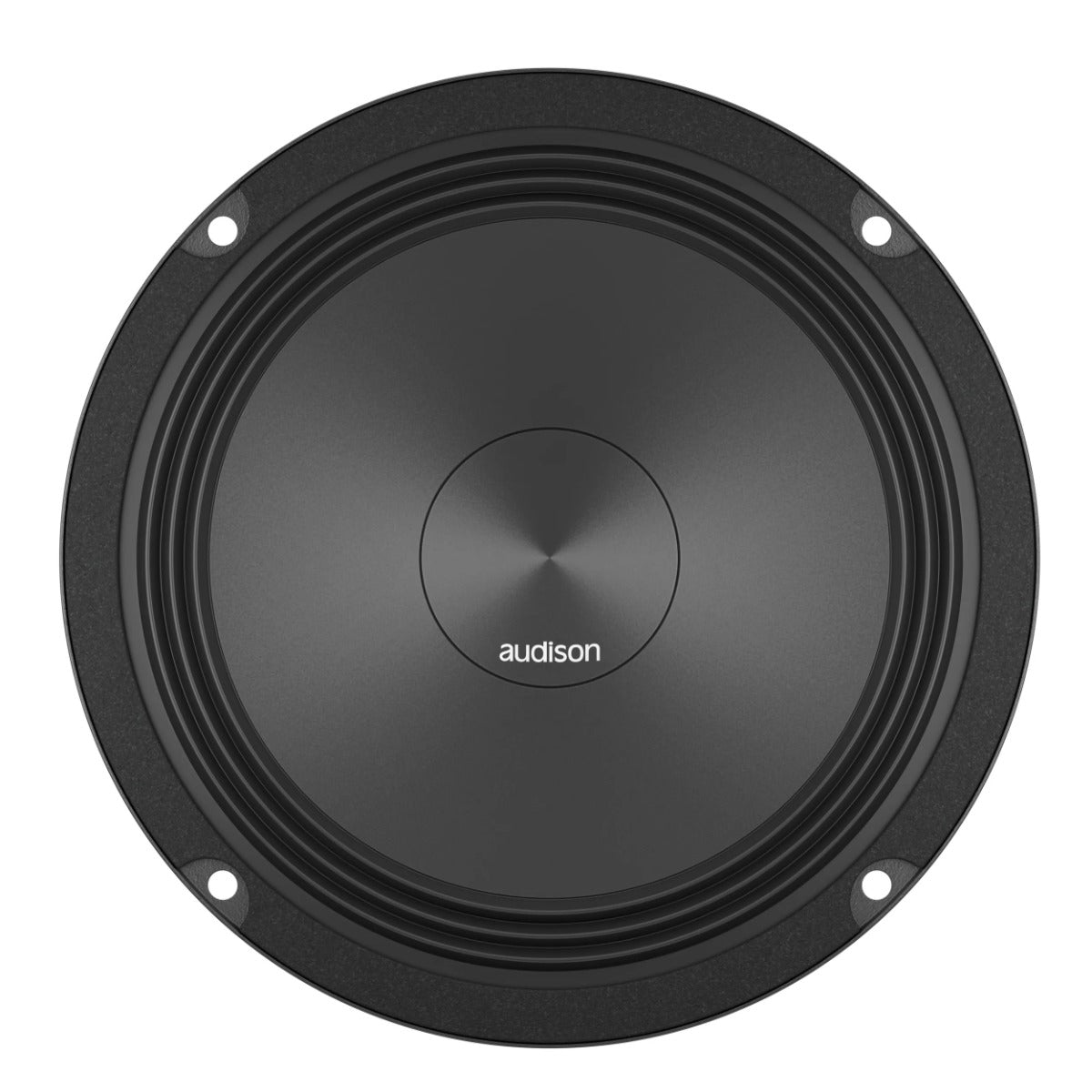

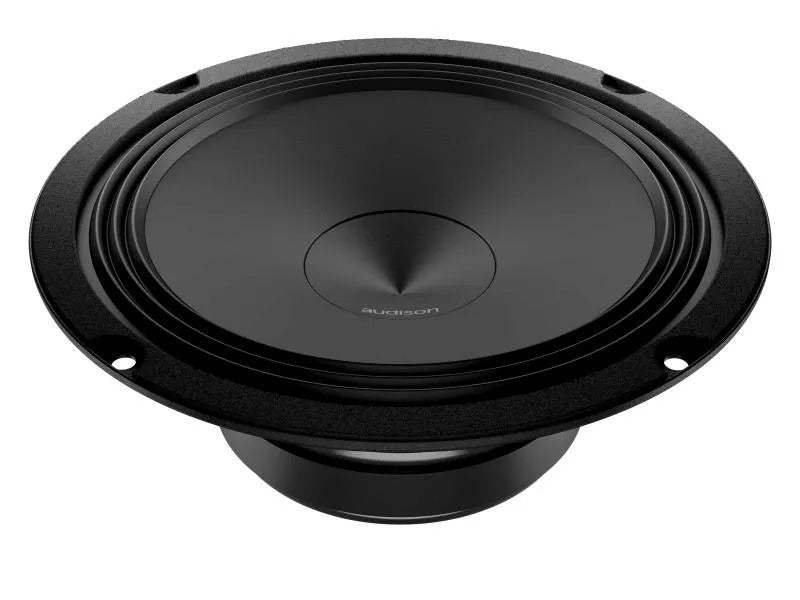

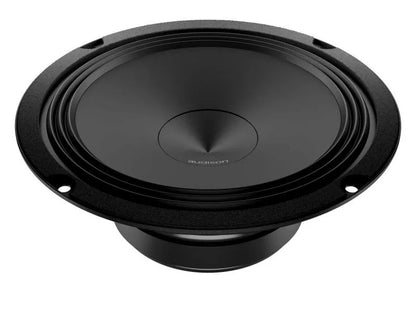

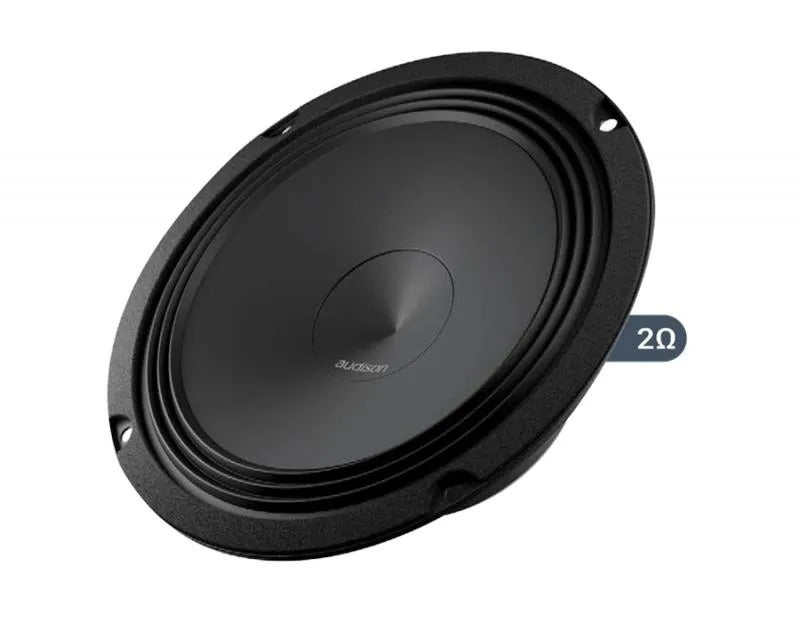

The AP 6.5 Ω2 wooferhas been developed with 2Ω nominal impedance with the purpose of exploiting all the power possible. To maximize the woofer efficiency achieving 95 dB, a 25 mm diameter 10 mm winding height coil, so a more lightweight coil, has been employed, at the same time also providing a linear excursion 2.8 mm higher than the one of AP 6.5 (4Ω), therefore ensuring high SPL values with minimum distortion even at high listening levels.

Technical Specs

• Nominal diameter - 165 mm (6.5 in)
• Impedance - 2 Ohm
• Power Handling - 210W Peak
• Power Handling - 70W Continuous
• Sensitivity - 95 dB
• Frequency Response - 60 ÷ 5k Hz
• Voice Coil Ø - 25 mm
• Magnet size D x d x h - 85 x 32 x 15 mm (in.)
• Xmax - 2.8 mm (0.11 in)
• Driver Displacement Volume - 95 l (3.355 ft)

Electric-acoustic Specs

• Re - 2.1 Ohm
• Fs - 75 Hz
• Le - 0.15 mH
• Vas - 8.5 l (0.3 ft)
• Mms - 10.5 g (0.37 oz)
• Cms - 0.4 mm/N
• BL - 3.8 T•m
• Qts - 0.63
• Qes - 0,73
• Qms - 4.8

General

• Weight - 0.78 kg
