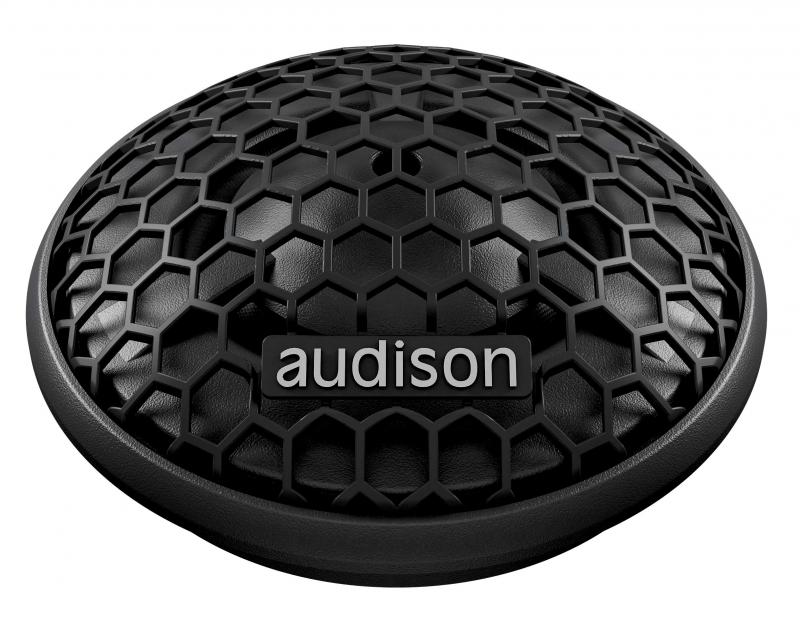

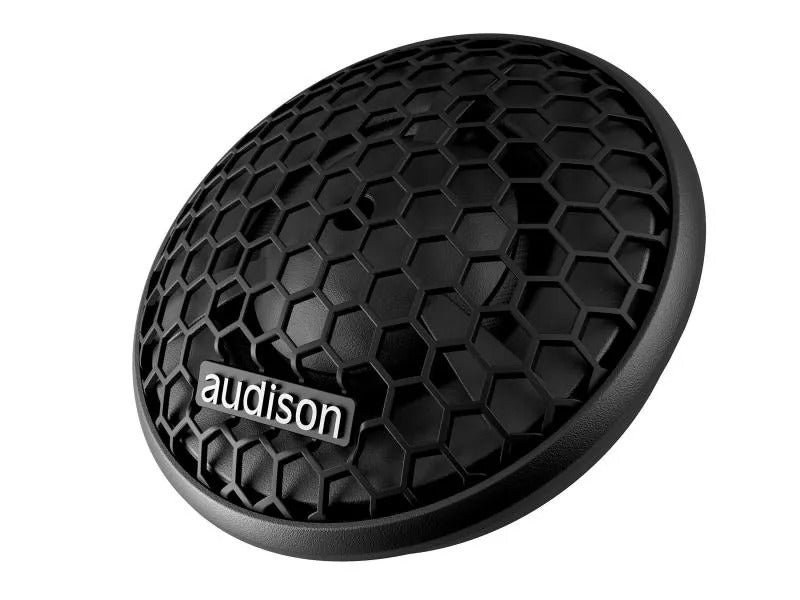

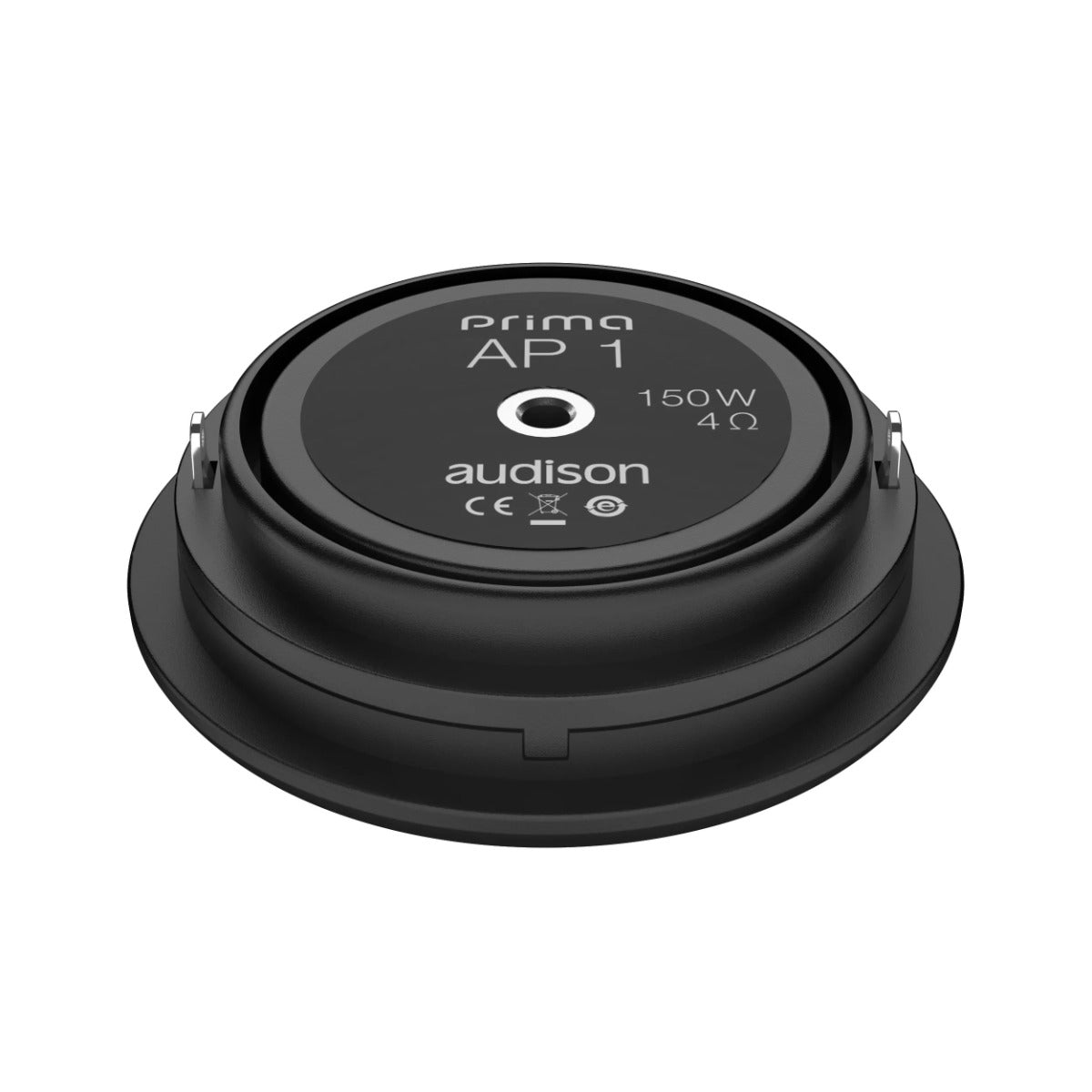

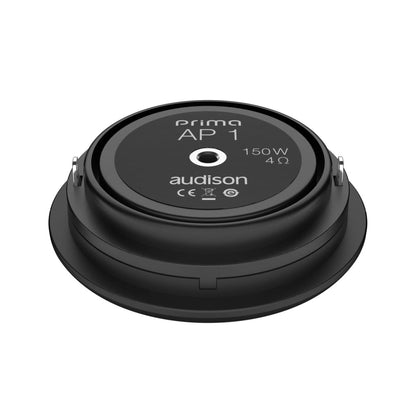

AUDISON AP1 - Prima 1" Tweeter
AUDISON AP1 - Prima 1" Tweeter

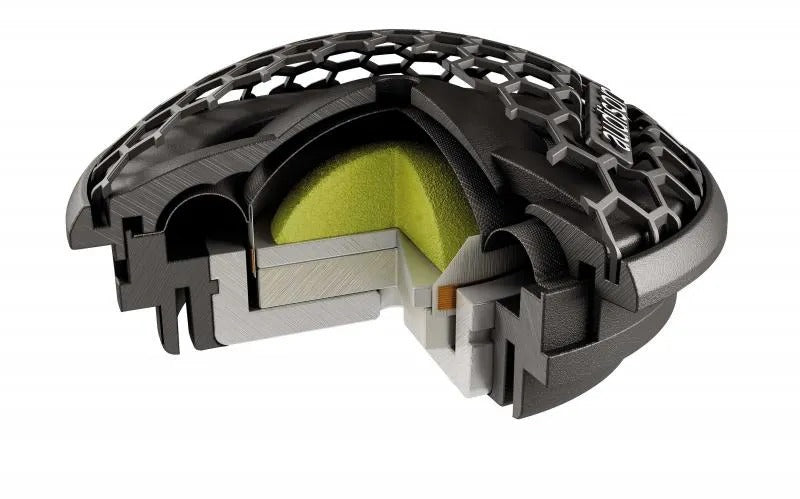

The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass. The powerful motor is characterized by a large Neodymium magnet.
Product Description
The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass. The powerful motor is characterized by a large Neodymium magnet.
Technical Specs
- Nominal diameter - 26 mm (1 in)
- Impedance - 4 Ohm
- Power Handling - 150 W Peak
- Sensitivity - 93 dB
- Frequency Response - 2k ÷ 20k Hz
- Voice Coil Ø - 20 mm (0.79 in)
- Magnet Material - NEODYMIUM
- Magnet size D x d x h - 19 x 3 mm (in.)
- Dome Material - TETOLON FIBRE

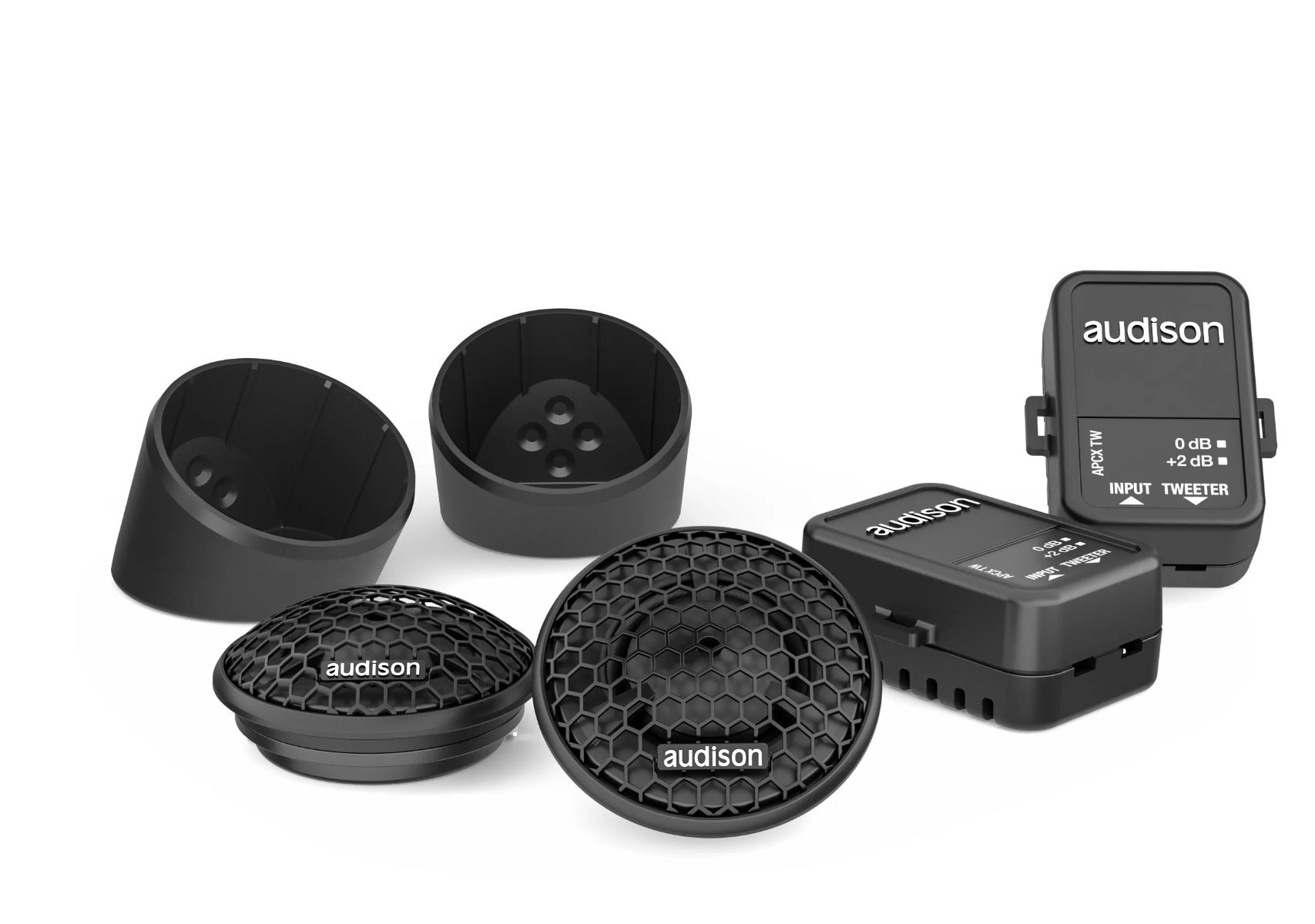

- Power Handling Crossover - Hi-pass filtered @ 3,5 kHz - 12 dB Oct
Electric-acoustic Specs
- Re - 3.5 Ohm
- Fs - 1500 Hz
- Le - 0.02 mH
- Mms - 0.16 g
- Cms - 0.09 mm/N
- BL - 1.3 T•m
- Qts - 0.98
- Qes - 2,78
- Qms - 1.5
General
- Weight - 0.04 kg
- Crossover Weight - 0.04 kg
