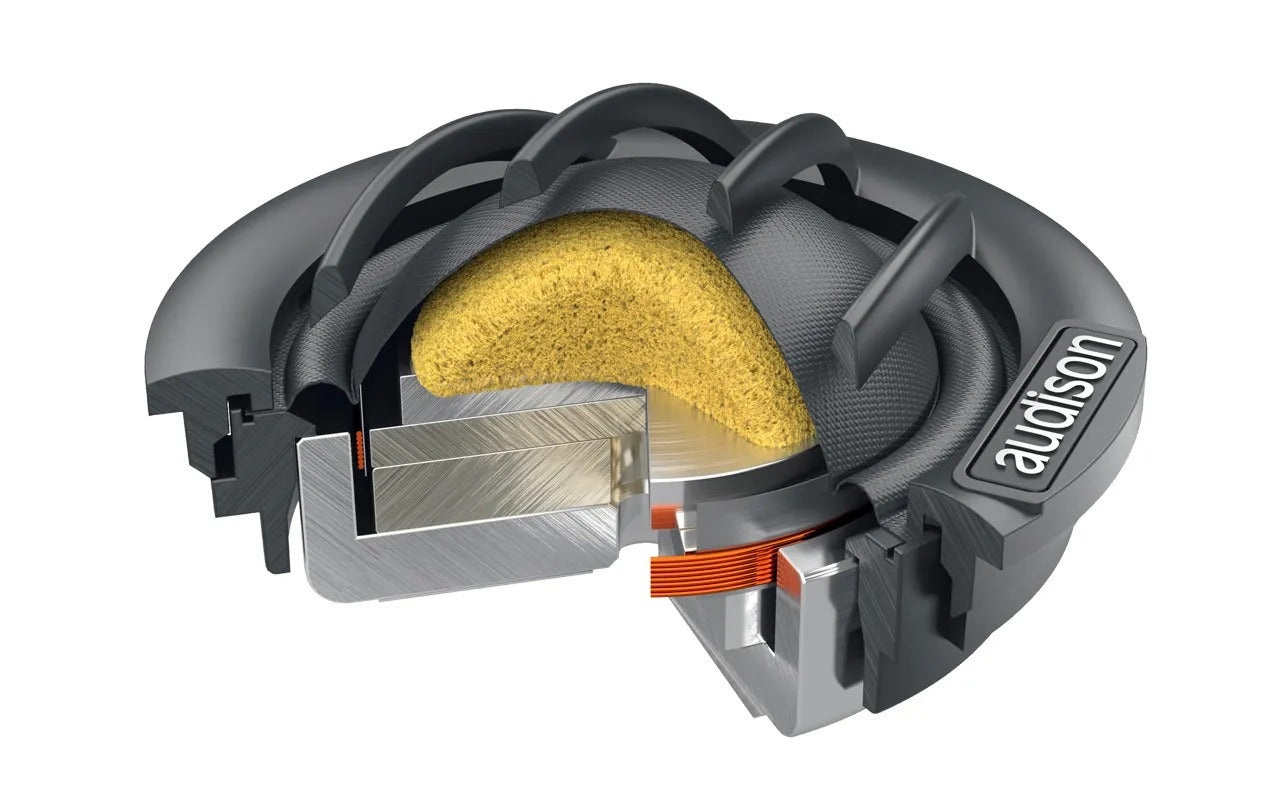

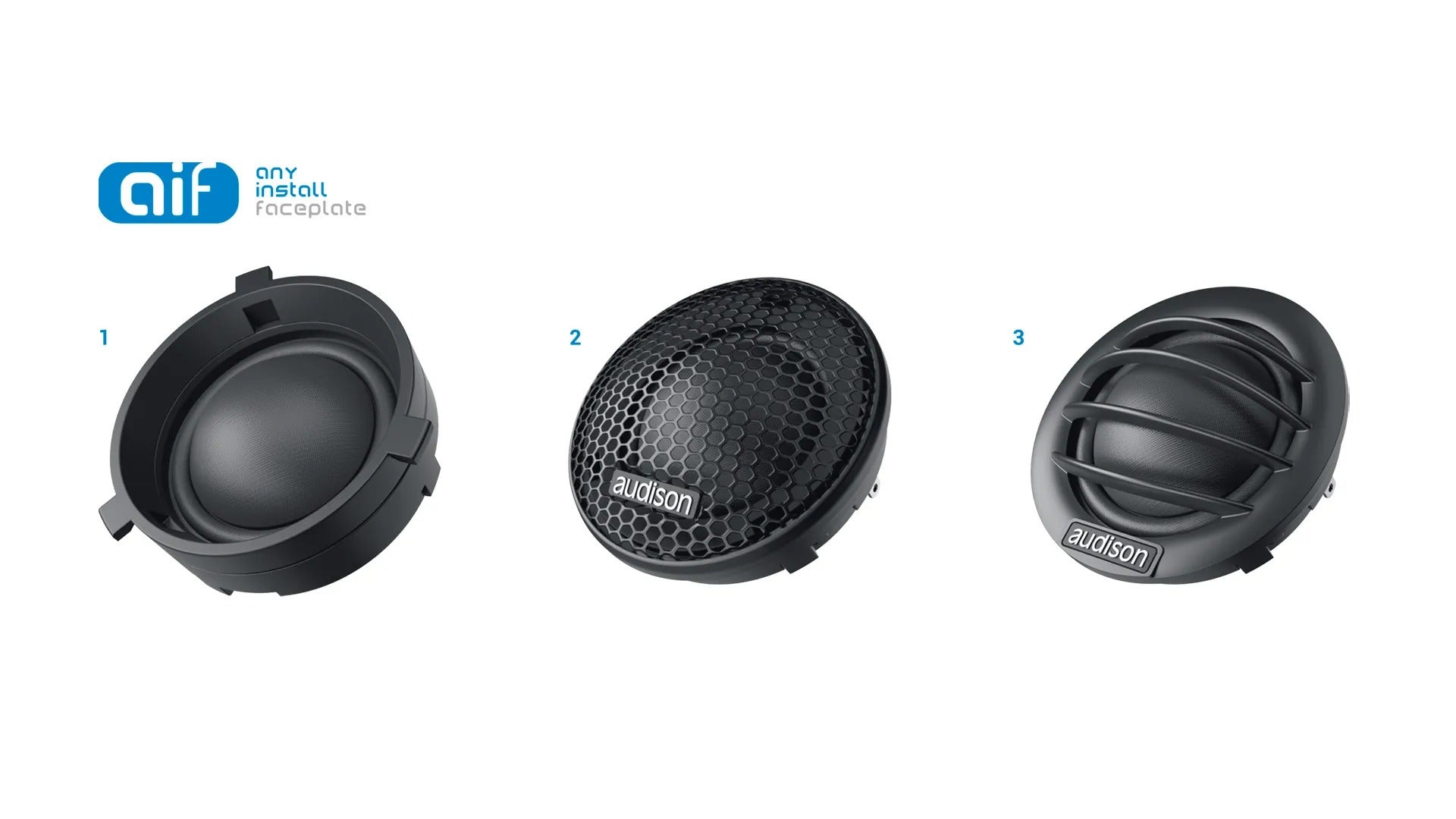

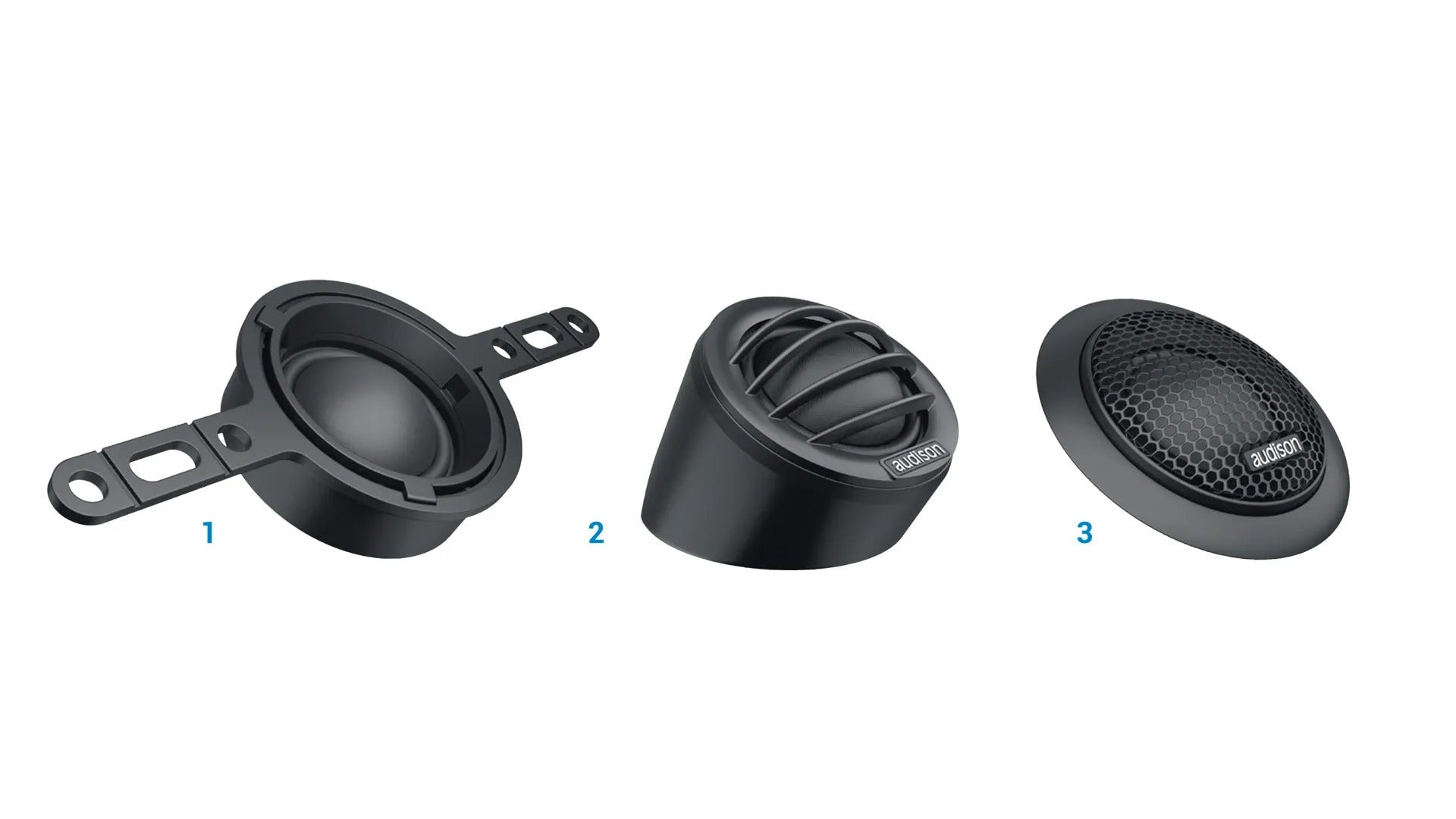

The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response.

Technical Specs

• Nominal diameter - 29 mm (1.14 in)
• Impedance - 8 Ohm
• Power Handling - 150W Peak
• Sensitivity - 92 dB
• Frequency Response - 1,2 ÷ 25k Hz
• Voice Coil Ø - 25 mm (0.98 in)
• Magnet Material - NEODYMIUM
• Magnet size D x d x h - 22 x 2,5 (0.87 x 0.1) mm (in.)
• Dome Material - TETOLON FIBRE

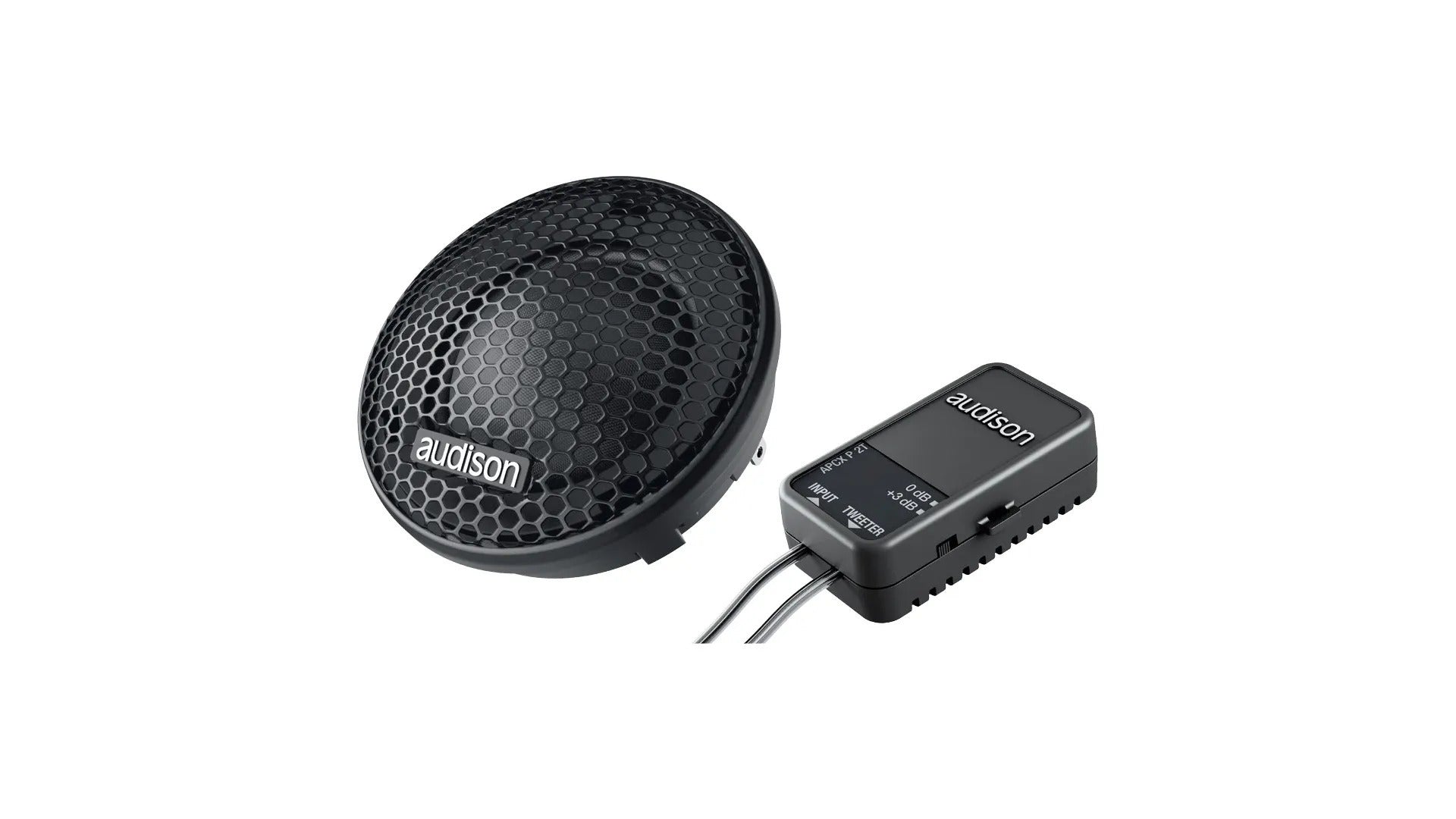

• Power Handling Crossover - Hi-pass filtered @2.5 kHz 12dB/oct
• Crossover name - APCX P 2T
• Crossover Type - High Pass 12 dB/oct.
• Crossover adjustment - Tweeter Level: 0 / +3 dB

Electric-acoustic Specs

• Re - 5.75 Ohm
• Fs - 1600 Hz
• Le - 0.04 mH
• Mms - 0.23 g
• Cms - 0.05 mm/N
• BL - 2.7 T•m
• Qts - 1.21
• Qes - 1.74
• Qms - 4

General

• Weight - 0.067 kg
• Crossover Weight - 0.065 kg
