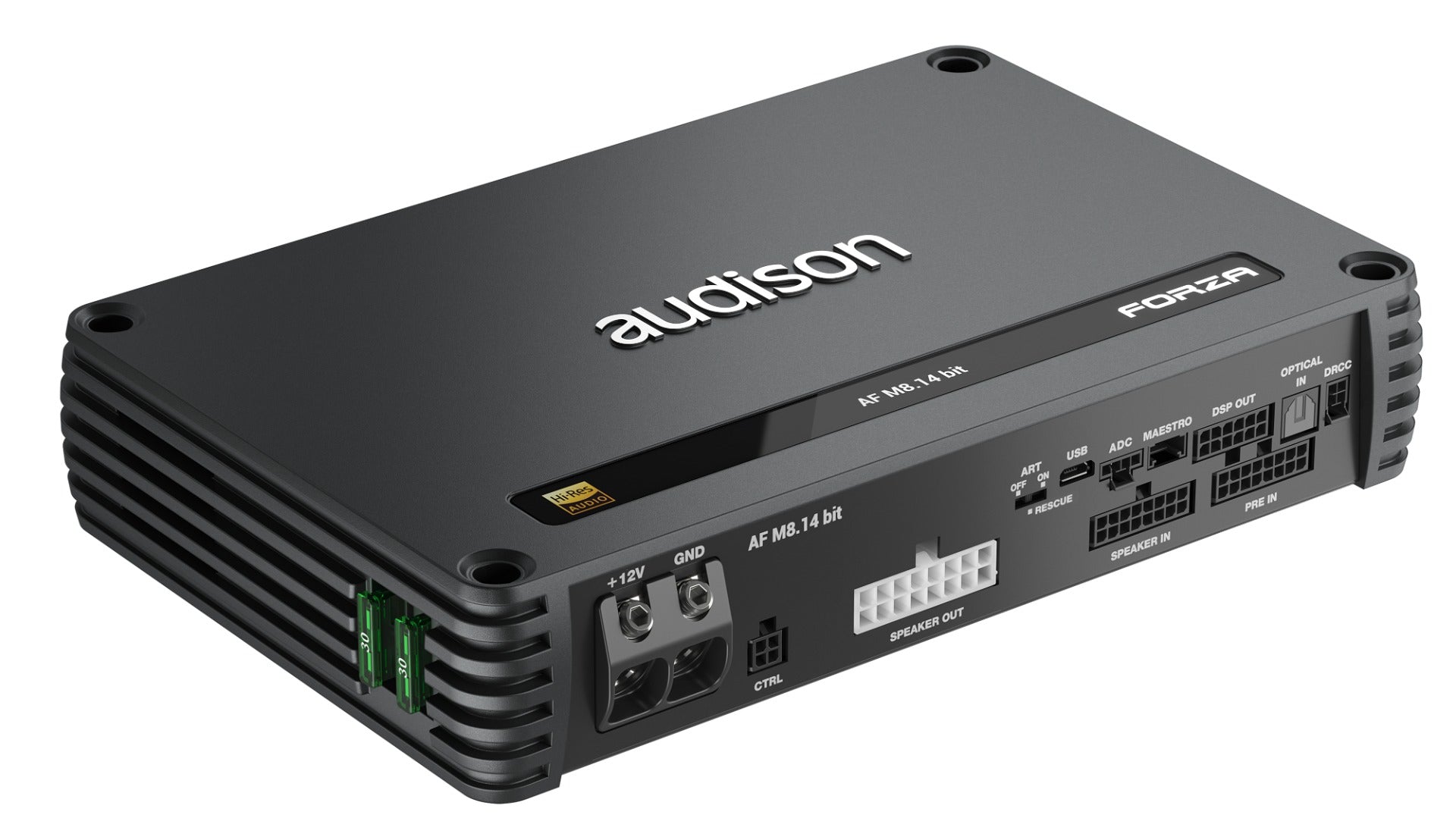

Clever engineering has facilitated a beefier version o fForza amplifiers. Now featuring 8 X 90 watts or a massive 8 X 140 Watts into 2 ohms, this beast remains unfeasibly compact and contains a high-spec 96kHz 24bit DSP with 14 outputs. Eight of these are assigned to the high power outputs of the amplifier, while a further six can be fed to additional amplifiers.

Tech Data

• Channels - 8

• Class - D-Class

• Power supply voltage / fuse - 11 ÷ 15 VDC / 2 x 30A

• Operating power supply voltage - 6.5 ÷ 17.5 VDC

• Idling current - 1.5 A

• Standby Current Draw - 1.7 mA

• Consumption @ 14.4 VDC, 2Ω, Max Musical Power - 55 A

• Remote IN - 4 ÷15 VDC (1 mA)

• Remote OUT - 6.5 ÷15 VDC (150 mA)

• ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers - 1.5 VDC

• Efficiency Rated Power - 82%

Amplifier Stage

• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power - 0.05%

• Bandwidth @ -1.5 dB - 10 Hz ÷ 42 kHz

• Damping factor @ 1 kHz, 4Ω, 2 VRMS - 100

• S/N ratio (A weighted @ 1 V Input) Master Input - 98.5 dBA

• S/N ratio (A weighted @ 1 V Input) Optical Input - 105

• Total Power RMS - 1120 W

• Minimum load impedance - 8Ch: 2Ω | 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω

• Output Continuous Power (RMS) @14.4 VDC, 1% THD

• 8 Ch @ 4Ω: 90 W x 8

• 8 Ch @ 2Ω: 140 W x 8

• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 280 W x 4

• Adjustable Crossover - Yes

CEA Specifications

• Output power @ 4Ω, 1% THD+N, 14.4 V - Output power @ 4Ω, 1% THD+N, 14.4 V: 90 W x 8 - SN ratio (ref. 1 W output): 80 dB

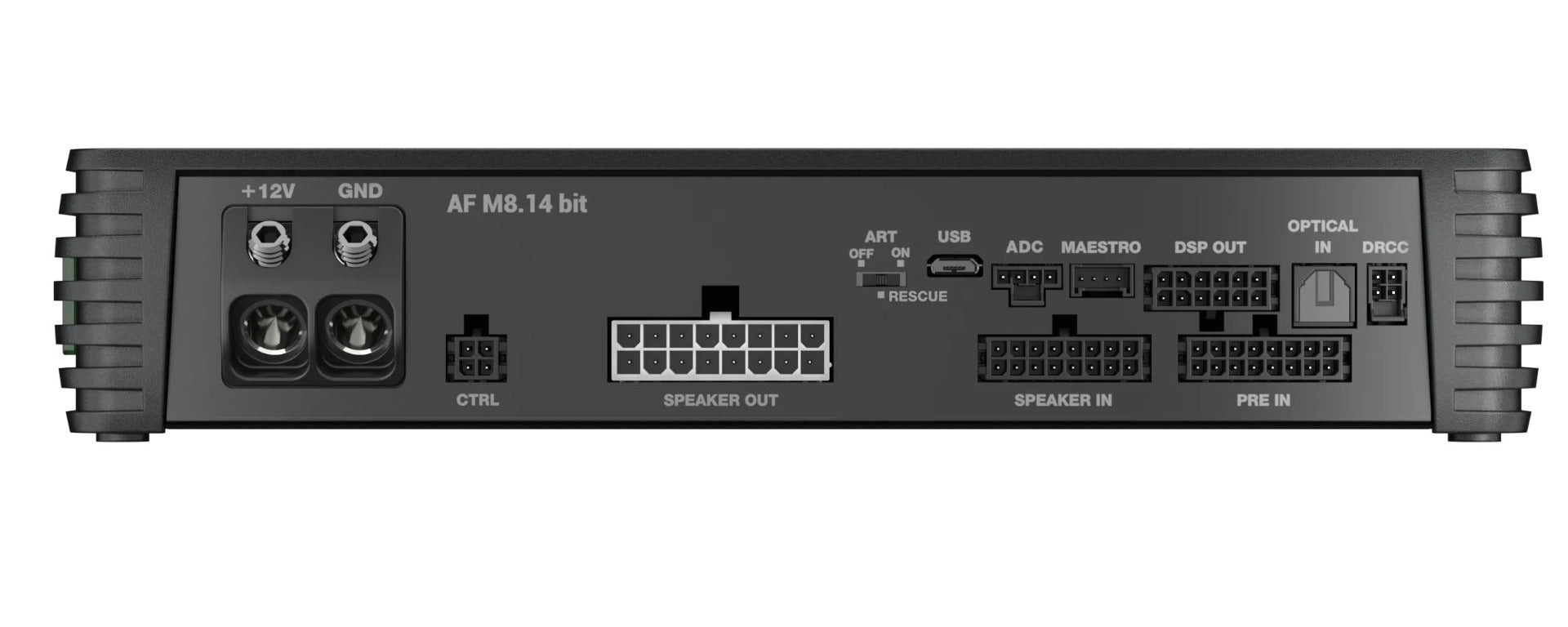

Inputs / Outputs

• Pre-In Inputs - 0.6 ÷ 6 VRMS (15 kΩ Imp.)

• Digital Input - Yes

• Pre Outputs - 6

• Hi Level Inputs - 8

• Low Level Inputs - 8

• Speaker-In Inputs - 2.2 ÷ 22 VRMS (5 Ω Imp.)

• Digital IN - 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

• Sub Out (RCA Pre Out) - 5V RMS

Digital Signal Processor

• Audio DSP Converter -

• Analog Devices ADAU1467 automotive qualified audio processor.

• Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance

• Filter type - Full / High-Pass / Low-Pass / Band-Pass

• Filter mode and slope -

• Linkwitz-Riley @ 12/24/36/48 dB/Oct.

• Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

• Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

• Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

• QLP @ 6 dB/Oct.

• Crossover frequency - 20 Hz ÷ 20 kHz

• Phase control - 0° / 180°, All-Pass filters

• Analog Input Equalizer (20 ÷ 20k Hz) - 12 Biquad + Delay

• Output Equalizer - Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

• Time Alignment Distance - 0 ÷ 510 cm / 0 ÷ 200.8 inches

• Time Alignment Delay - 0 ÷ 15 ms

• Input Output Real Time Audio Monitor - RTA

Control Connections

• DRC Port - Input for DRCC remote control (Optional)

• ADC Port - Manage other Audison devices that support this standard

• 1 Wire - Customizable functions (+ 12 V activated)

• 2 Wire - Customizable functions (+ 12 V activated)

General Requirements

• PC connections - Micro USB 1.1 / 2.0 / 3.0 Compatible

• Software/PC requirements - Windows 10, Windows 11 (min. res. 1024 x 768)

• Ambient operating temperature range - 0 °C to 55 °C (32 °F to 131 °F)

• Size - 240 x 47 x 156 / 9.44 x 1.85 x 6.14

• Weight - 2.04 kg
