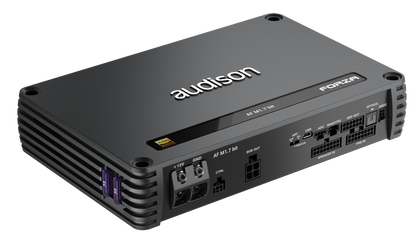

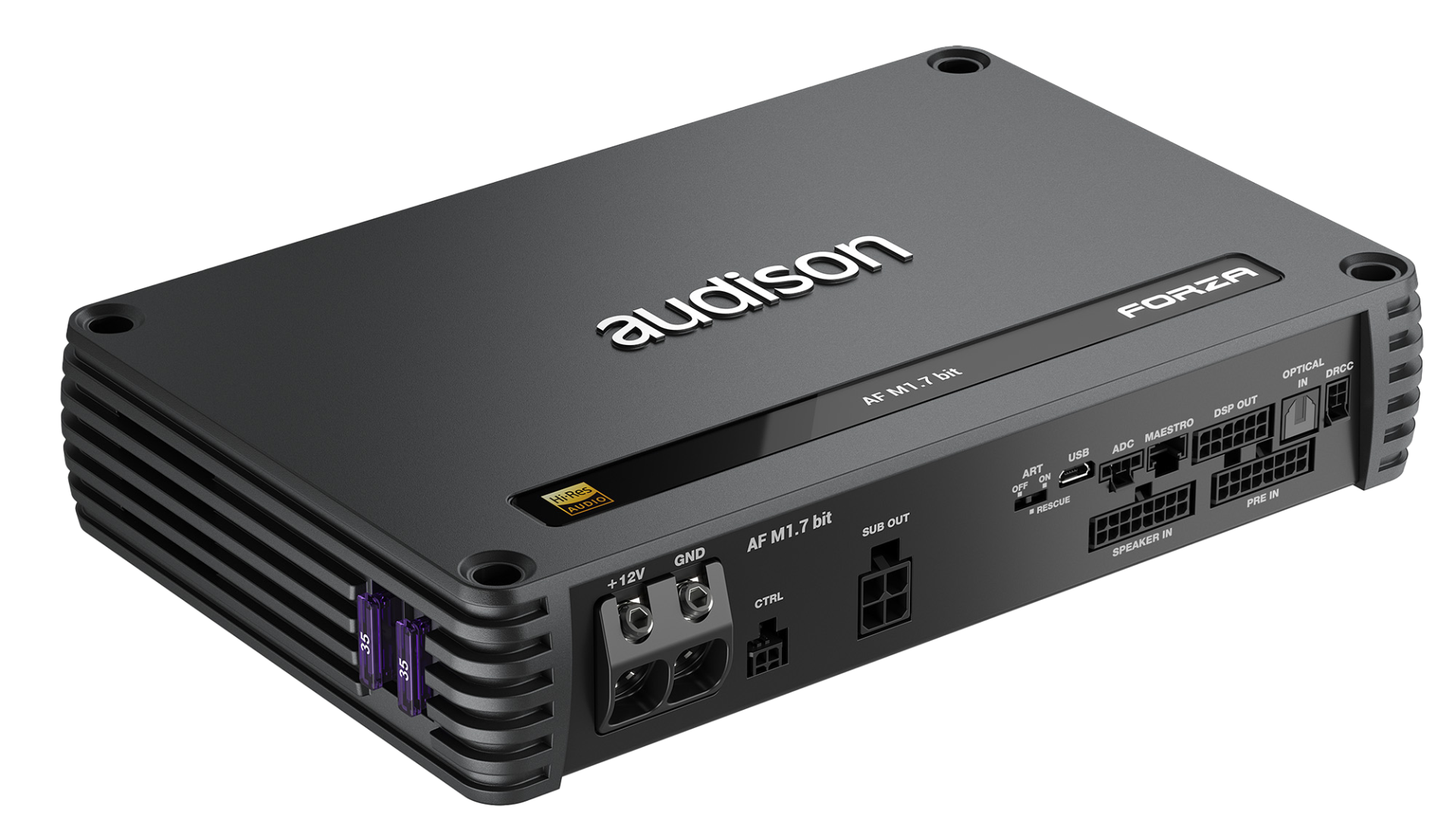

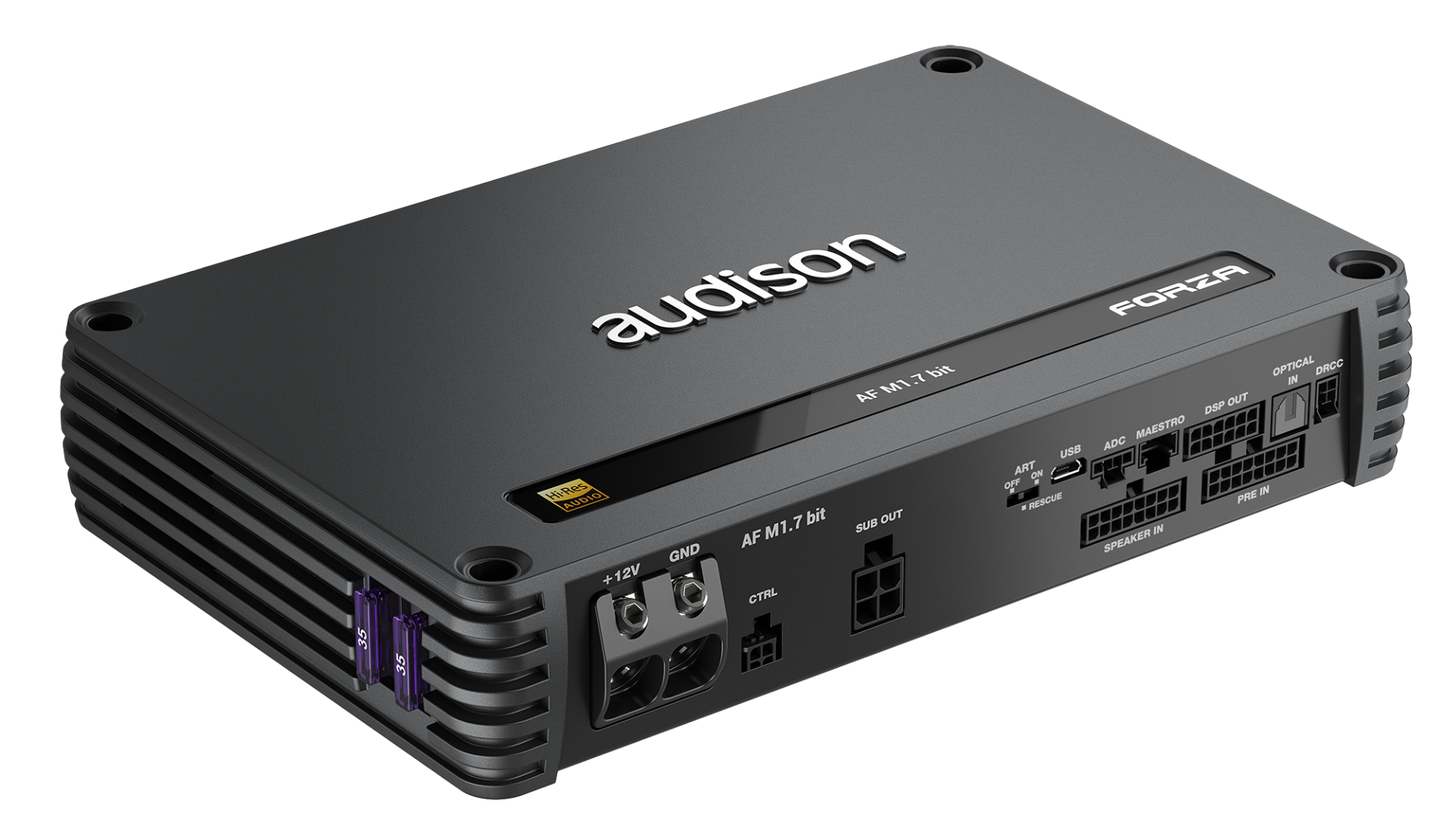

The Audison Forza AF M1.7 bit combines a powerful Class-D amplifier with cutting-edge DSP technology. This amplifier delivers 600W RMS at 4Ω, 1000W at 2Ω, and 1200W at 1Ω—matching the proven Forza AF M1D—but adds a powerful 24-bit, 96kHz DSP. The bit Drive software for the AF M1.7 bit includes specific algorithms for optimizing in-car subwoofer performance. The DSP provides equalization, crossover, time delay management, level adjustments, and dynamic loudness. The AF M1.7 bit also features the exclusive “Bass-Magnifier” function, which maximizes low-frequency output in the cabin for an immersive listening experience and realistic dynamic response. It supports 8 input channels and up to 12 using the optional F4IN card with flexible routing and mixing capabilities via the bit Drive software. It includes the Universal Speaker Simulator (USS) circuit for perfect integration with OEM audio systems. The AF M1.7 bit is compatible with the high-resolution Bluetooth receiver B-CON and its B-CON go app for remote control from a smartphone. Compatibility extends to the new DRC MP CAN and DRC AC remote controllers. The AF M1.7 bit is ideal for car audio enthusiasts seeking exceptional sound quality and advanced control features.

Amplifier Tech Data

• Channels - 1

• Class - D-Class

• Efficiency - 84 %

• Power supply voltage / fuse - 11 ÷ 15 VDC / 2 x 35A

• Operating power supply voltage - 6.5 ÷ 17.5 VDC

• Idling current - 1.15 A

• Consumption @ 14.4 VDC, 2Ω, Max Musical Power - 65 A

• Remote IN - 4 ÷ 15 VDC (1 mA)

• Remote OUT - 6.5 ÷ 15 VDC (150 mA)

• ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers - 1.5 VDC

• Efficiency Rated Power - 84%

Amplifier Stage

• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power - 0,03 %

• Bandwidth @ -1.5 dB - 10Hz ÷ 600 Hz

• Damping factor @ 1 kHz, 4Ω, 2 VRMS - 140

• S/N ratio (A weighted @ 1 V Input) Master Input - 105 dBA

• S/N ratio (A weighted @ 1 V Input) Optical Input - 105

• Total Power RMS - 1200 W

• Minimum load impedance - 1Ω

• Output Continuous Power (RMS) @14.4 VDC, 1% THD:

• 1Ch @ 4Ω: 600 W x 1

• 1Ch @ 2Ω: 1000 W x 1

• 1Ch @ 1Ω: 1200 W x 1

• Adjustable Crossover - Yes

CEA Specifications

• Output power @ 4Ω, 1% THD+N, 14.4 V - 600 W

• SN ratio (ref. 1W output) - 81 dB

Inputs / Outputs

• Pre-In Inputs - 0.6 ÷ 6 VRMS (15 KΩ Imp.)

• Digital Input - Yes

• Pre Outputs - 6

• Hi Level Inputs - 8

• Low Level Inputs - 8

• Speaker-In Inputs - 2.2 ÷ 22 VRMS (5 Ω Imp.)

• Digital IN - 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

Digital Signal Processor

• Filter type - Full / High-Pass / Low-Pass / Band-Pass

• Filter mode and slope:

• Linkwitz-Riley @ 12/24/36/48 dB/Oct.

• Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

• Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

• Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

• QLP @ 6 dB/Oct.

• Crossover frequency - 20 Hz ÷ 20 kHz

• Analog Input Equalizer (20 ÷ 20k Hz) - 12 Biquad + Delay

• Time Alignment Distance - 0 ÷ 510 cm / 0 ÷ 200.8 inches

• Time Alignment Delay - 0 ÷ 15 ms

• Input Output Real Time Audio Monitor - RTA

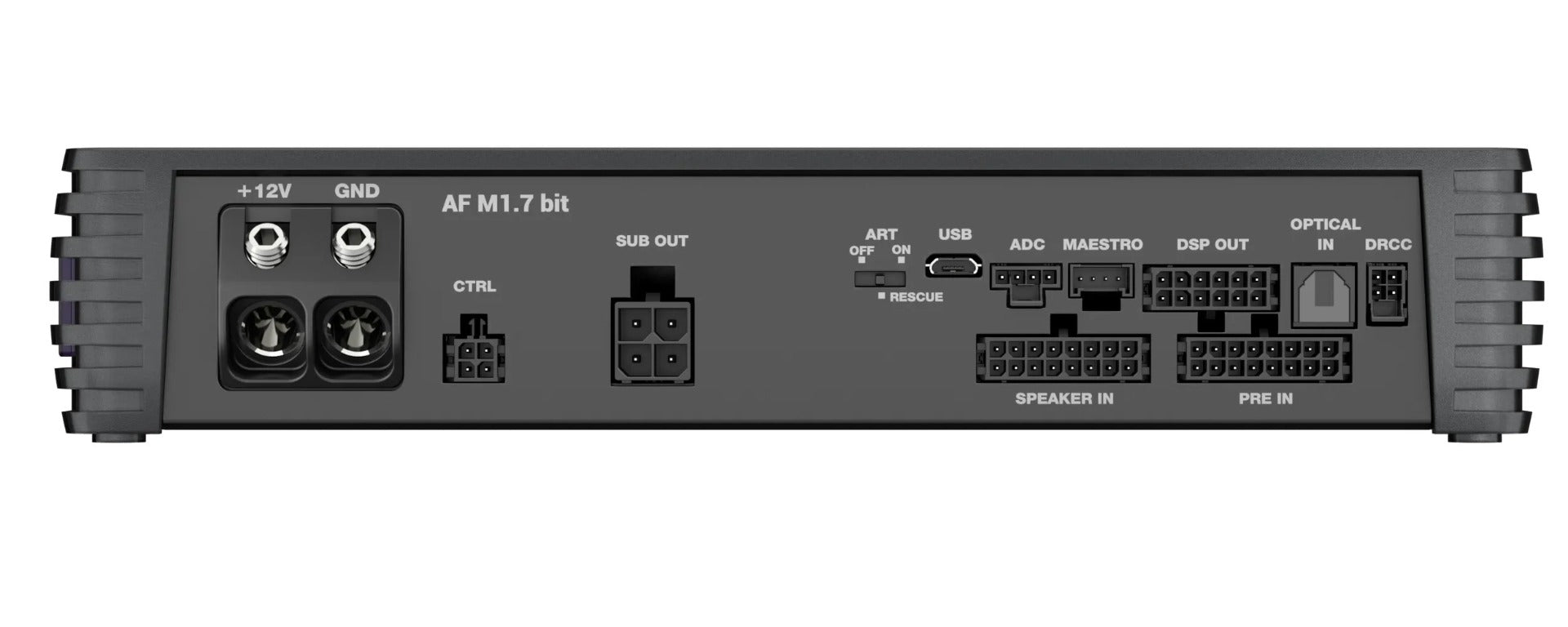

Control Connections

• DRC Port - Input for DRC AC remote control (Optional)

• ADC Port - Manage other Audison devices that support this standard

• 1 Wire - Customizable functions (+ 12 V activated)

• 2 Wire - Customizable functions (+ 12 V activated)

General Requirements

• PC connections - Micro USB 1.1 / 2.0 / 3.0 Compatible

• Software/PC requirements - Windows 10, Windows 11 (min. res. 1024 x 768)

• Ambient operating temperature range - 0 °C to 55 °C (32 °F to 131 °F)

• Size - 240 x 47 x 156 / 9.44 x 1.85 x 6.14

• Weight - 1.95 kg
