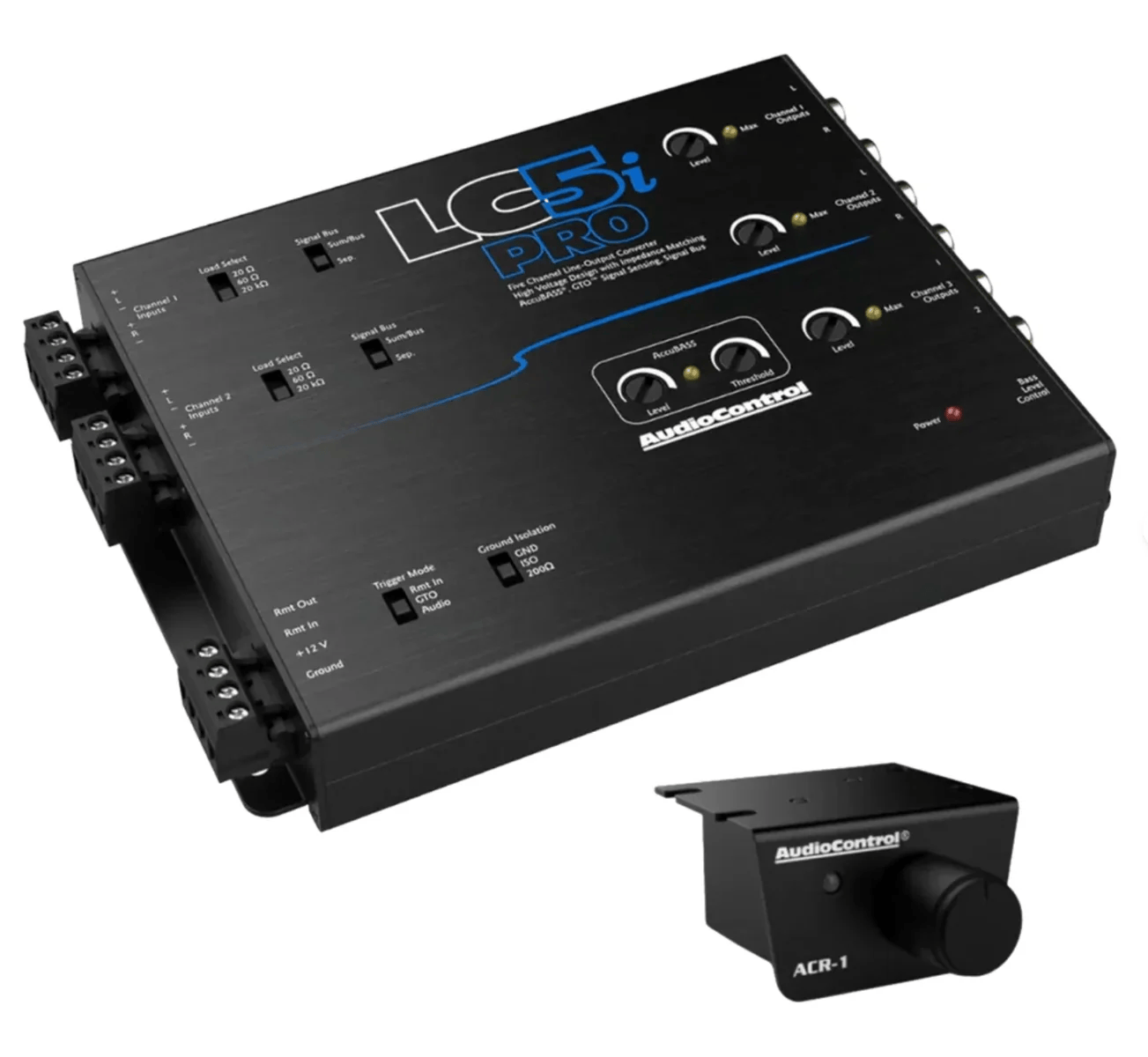

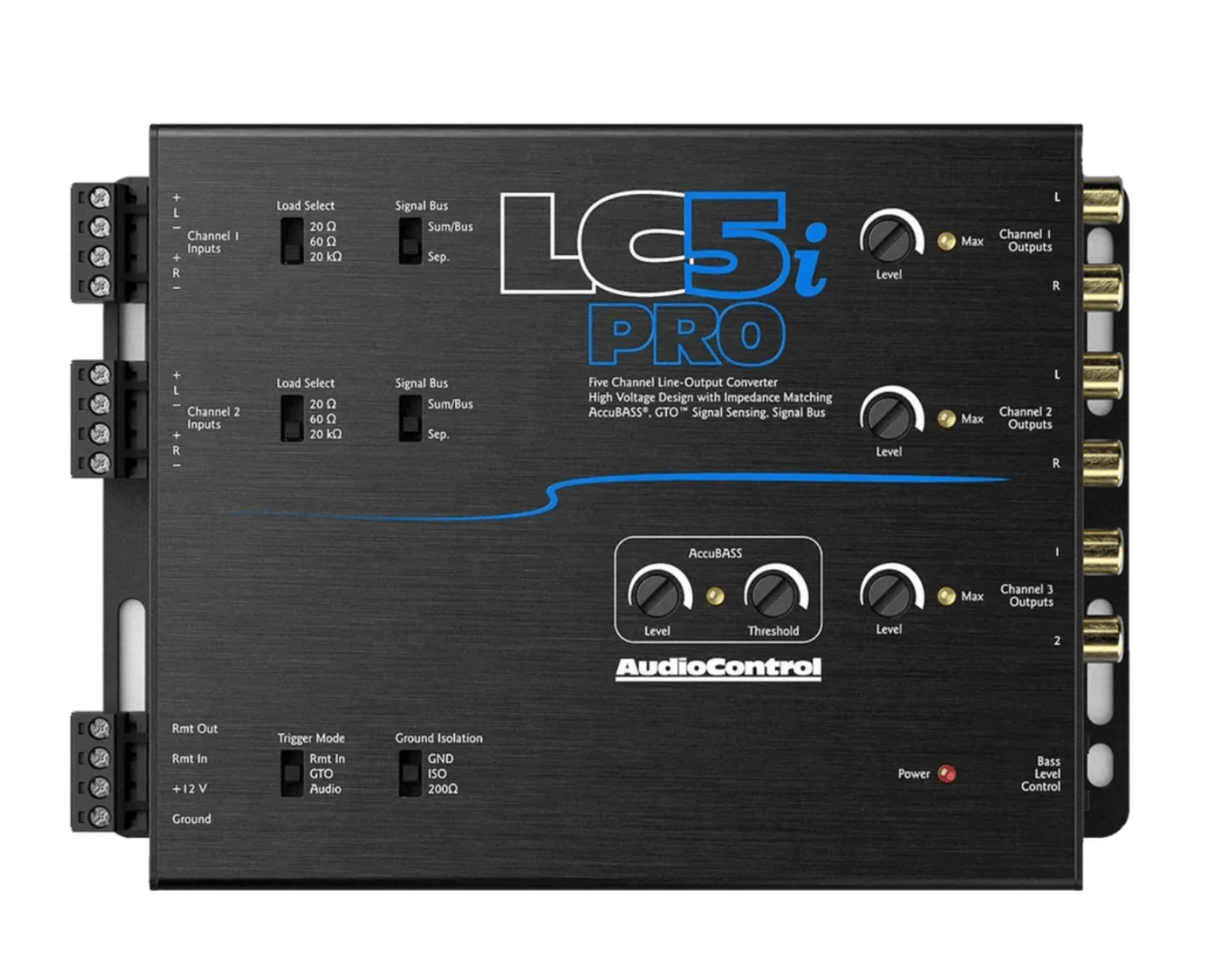

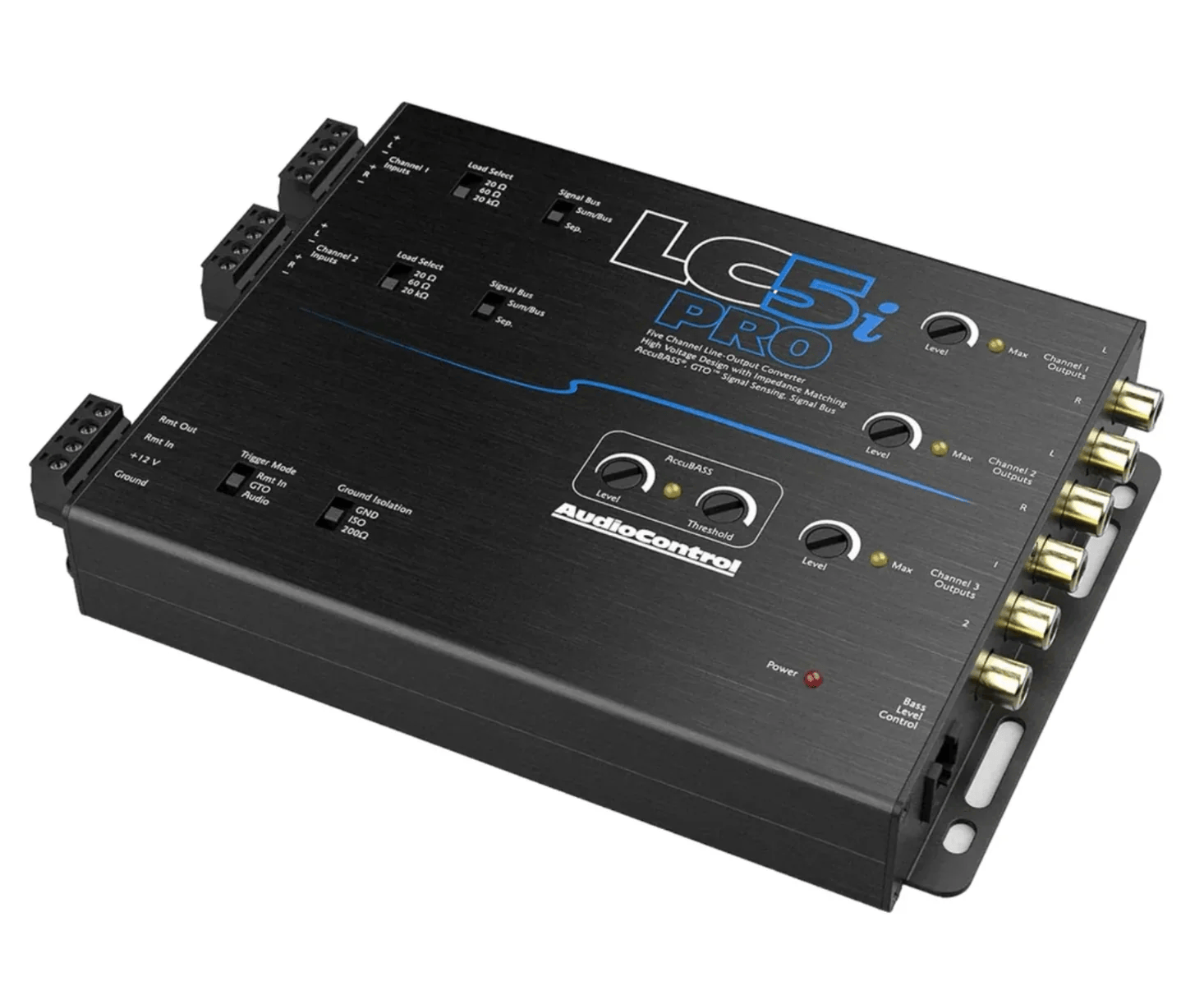

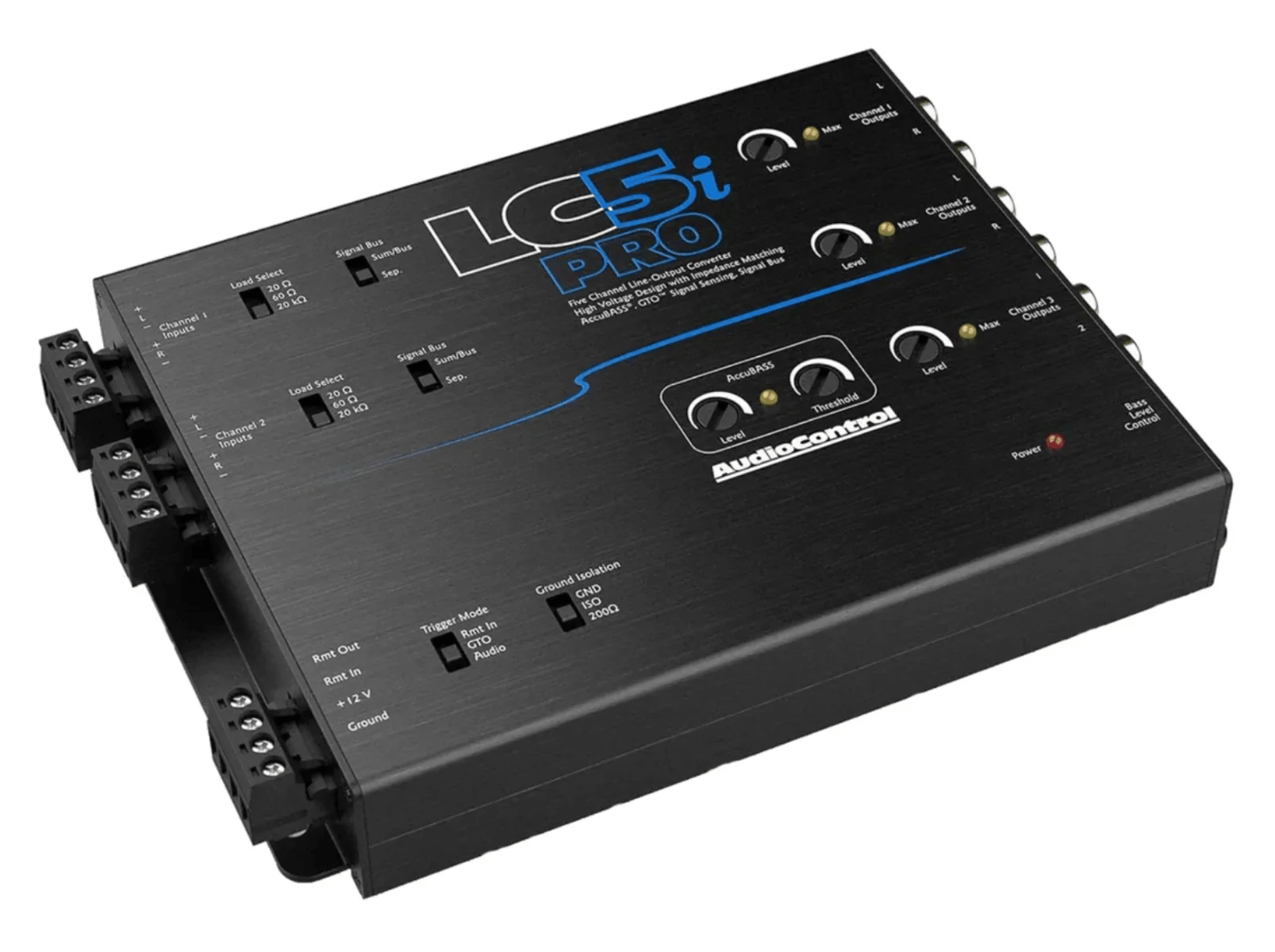

5 Channel Line Out Converter With Accubass

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound.

Features

• Four channels of active speaker-level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote included
• Compact design

Specifications Inputs

• Speaker Level Input: 1 (4 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
• Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

Outputs

• Preamp Outputs: 5 (4 channels main, 1 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 15 dB
• Output Impedance: 150Ω

Performance

• Total Harmonic Distortion: 0.01%
• Signal to Noise: >124 dB
• Frequency Response: 20 Hz – 20 kHz

Control

• Remote In / GTO™ Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)

General

• Current Draw: 330 mA
• Recommended Fuse Rating: 2 A

Weights & Dimensions

• Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
• Weight: 1.1 lbs.

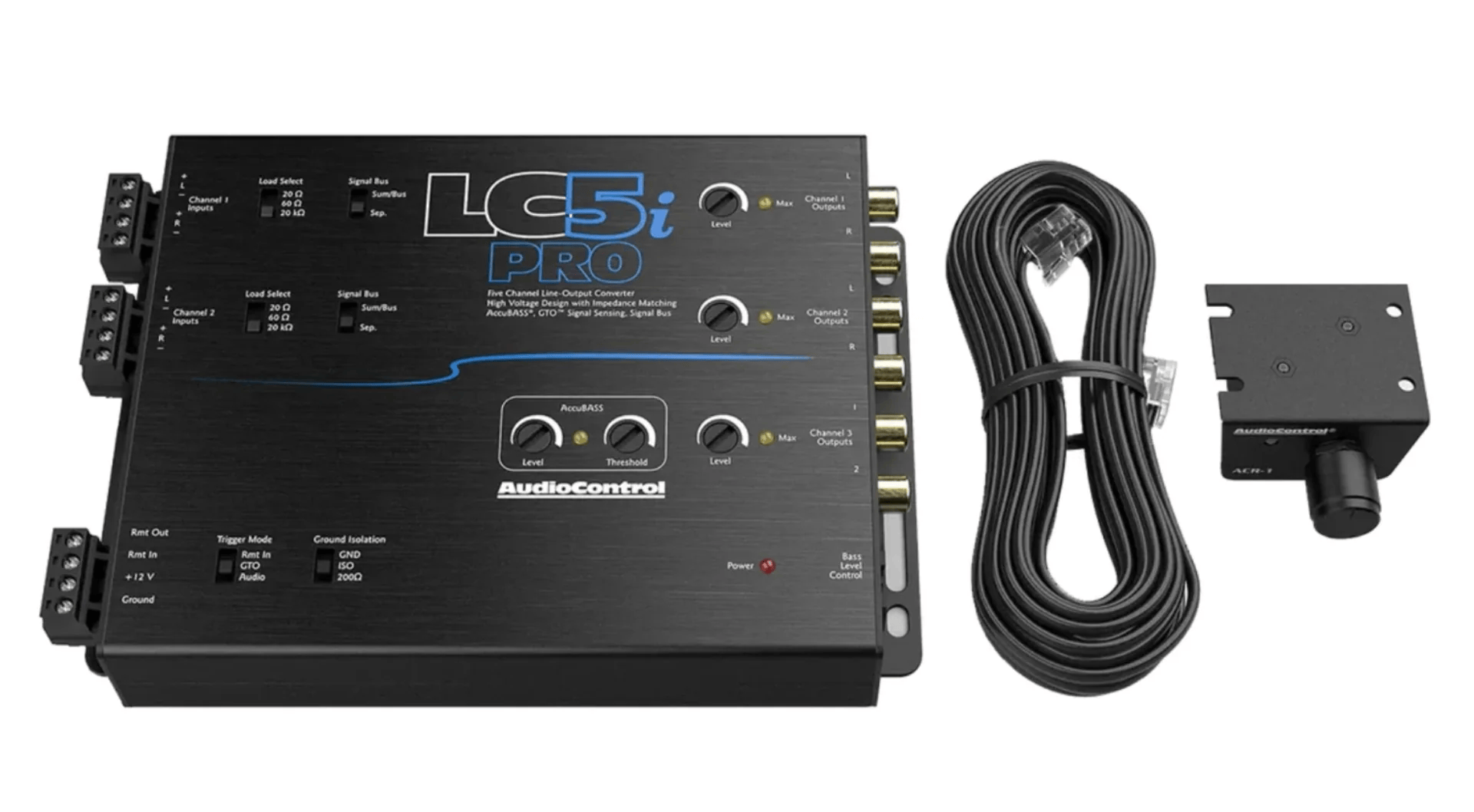

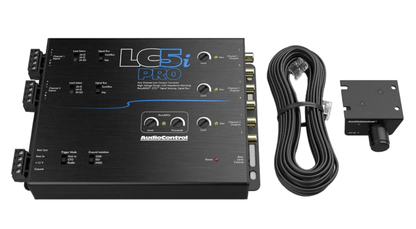

In The Box

• LC5i PRO
• ACR-1
• 20′ Phone Cable
• Speaker and Power connectors
• Manual, Warranty
