The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.

Specifications

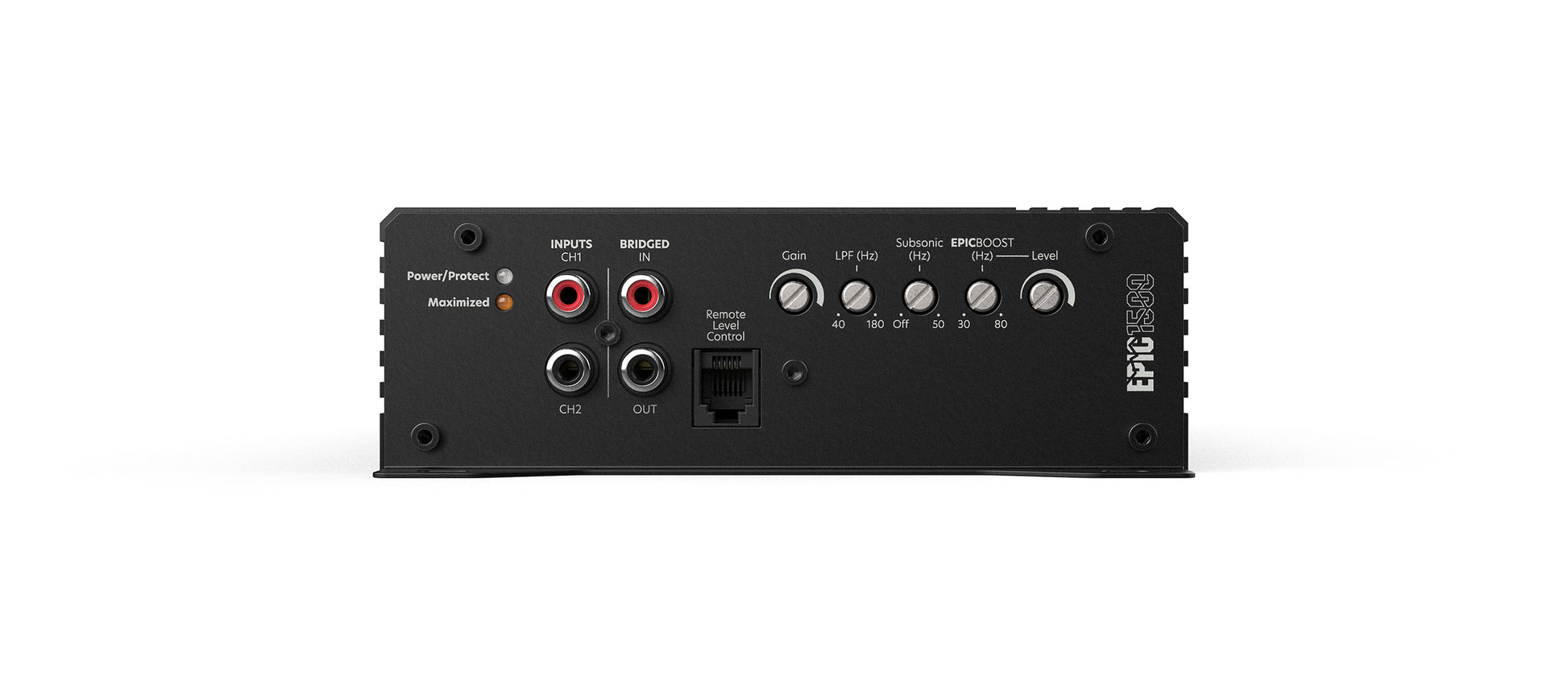

Inputs

• Line-Level Inputs: 500mV – 6V RMS

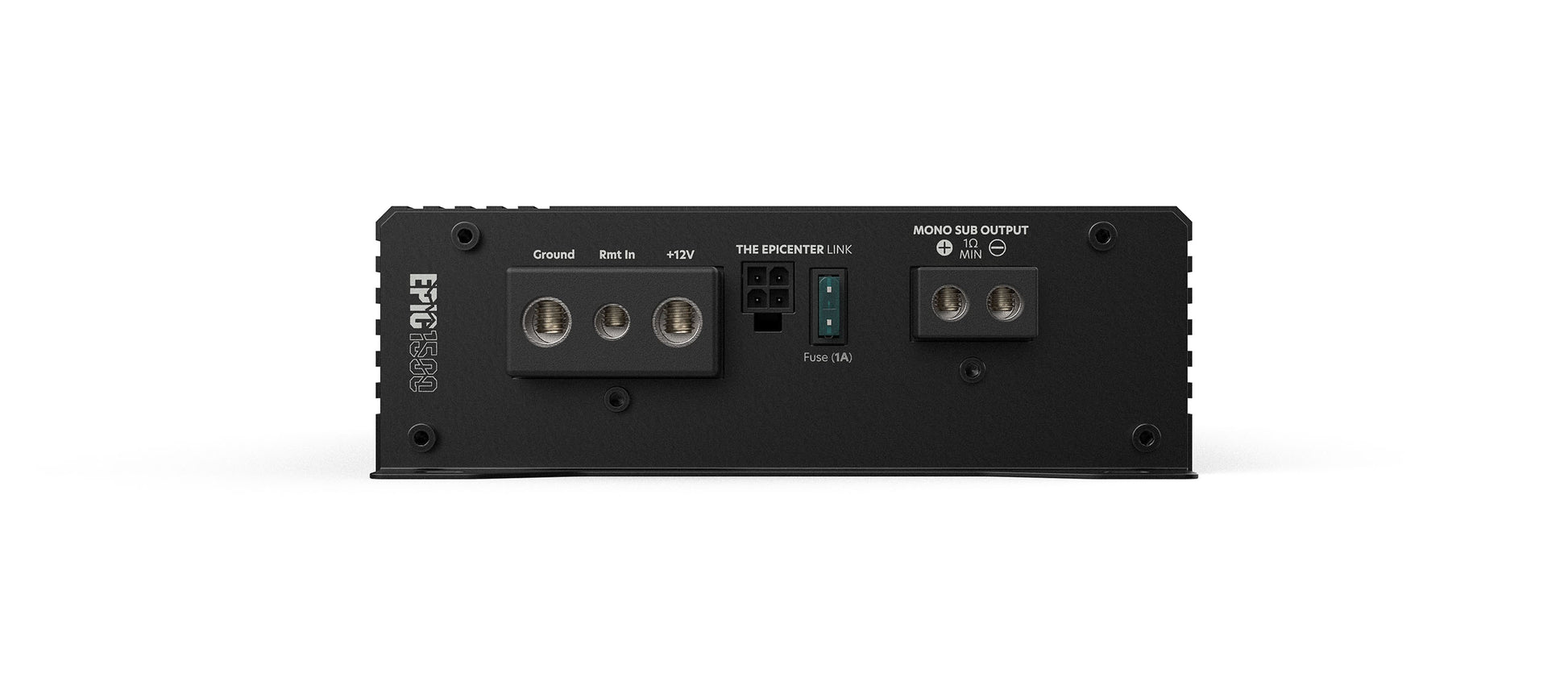

Outputs

• Continuous Power (RMS) @ 14.4V1 x 600 Watts @ 4 ohms
• 1 x 1000 Watts @ 2 ohms
• 1 x 1500 Watts @ 1 ohm
• 1 x 3000 Watts @ 2 ohms Bridged (Strapped)

Remote Level Control

• Included

Dimensions

• 6.1″ W x 10.59″ L x 2.01″ H

Performance

• Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
• S/N Ratio: 92.8 dBa, Ref 600 Watts @ 4 ohms
• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 150 Amps
• Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
• Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
• EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
• Speaker Terminal Wire Gauge: 8 AWG
• Strapable: Yes
• Epicenter Link: Yes

Features

• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®

In The Box

• EPIC1500
• Wrench
• Screws
• ACR-E Remote Level Control and Cable
• The Epicenter Link (1m Harness)
• Manual
