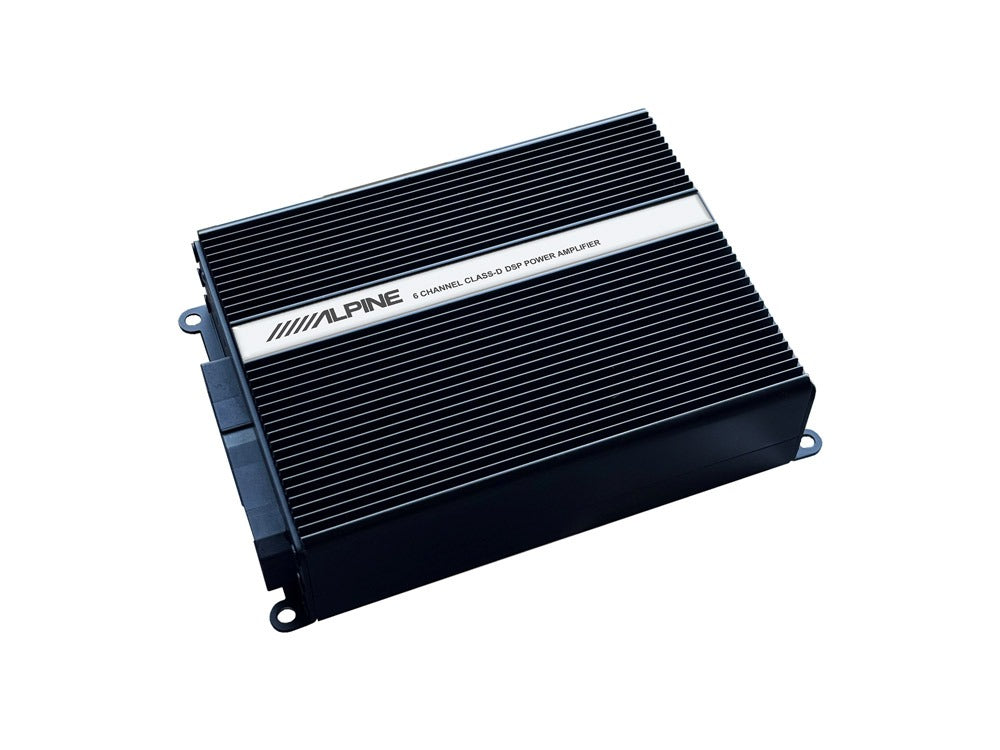

DSP Amplifier

• 6-Channel DSP Class D Amplifier
• RMS Power Ratings CH 1-4 into 4 Ohms: 80W RMS x 4 (14.4V at 1% THD+N)
• RMS Power Ratings CH 5-6 into 2 Ohms: 120W RMS x 2 (14.4V at 1% THD+N)
• Class AB (channel 1-4) and Class D (channel 5+6) amplification circuits
• 4x high power inputs
• Power Requirement: 12 V
• Measurements: 142mm x 40mm x 122mm (176mm with connectors plugged in)
• Pre-programmed Sprinter 907 / 910 sound settings with digital time correction
• Adjustments for LHD or RHD vehicles
• Designed to work with retrofit radio (RCA)
• Designed to work with original Mercedes Sprinter radios (high-power)

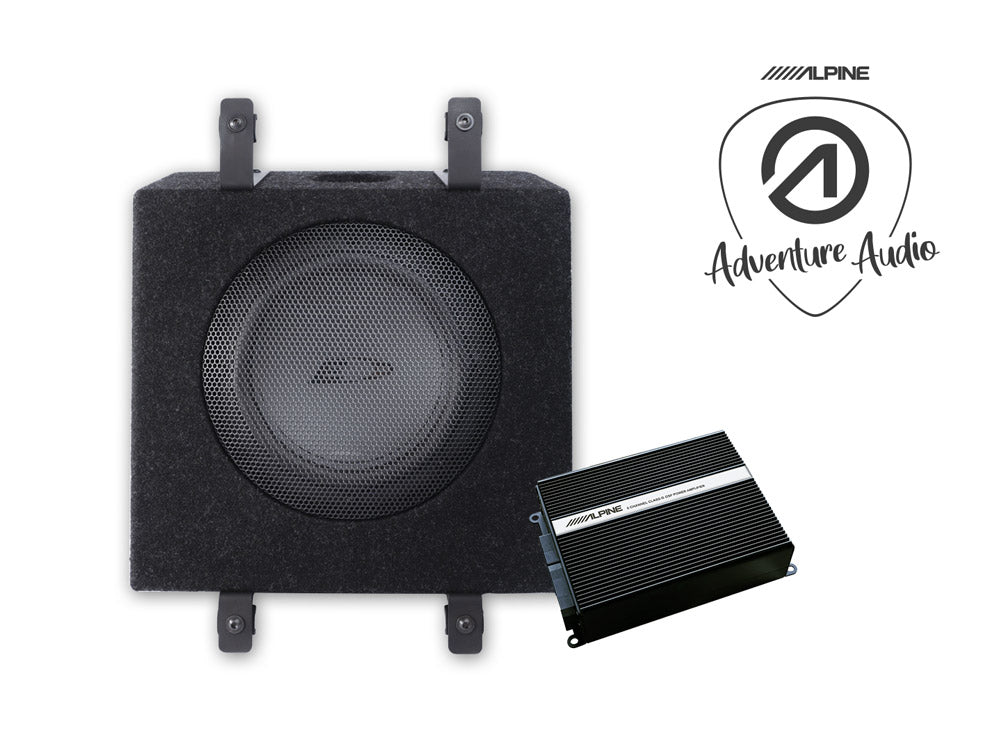

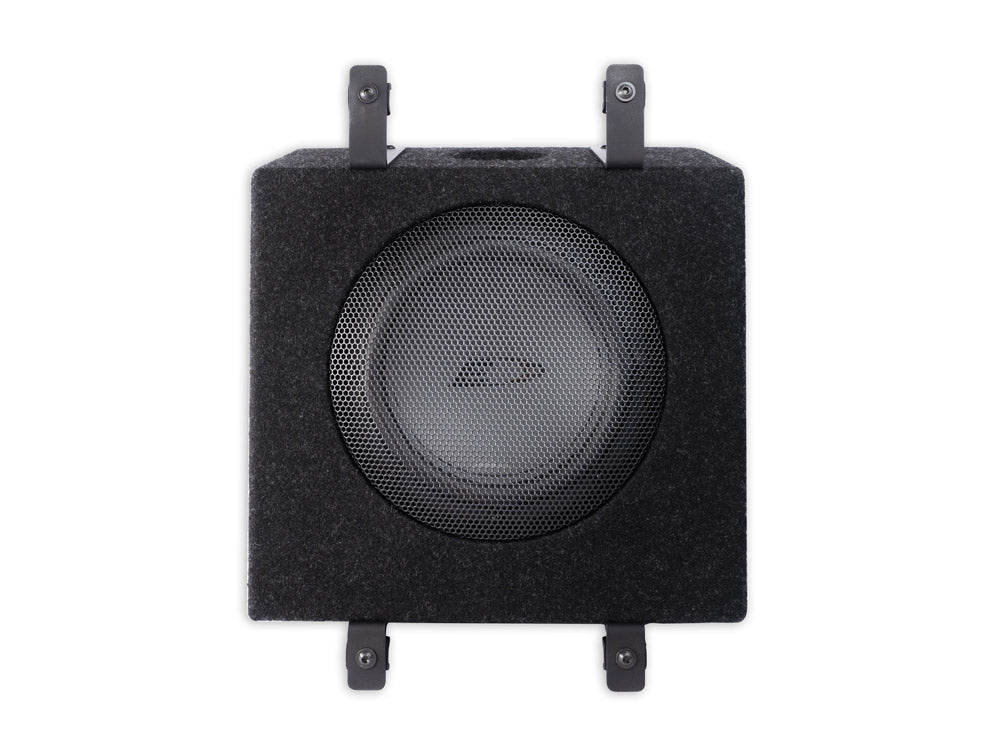

Subwoofer

• 20 cm (8”) dual voice coil subwoofer (2 Ohm + 2 Ohm)
• 180-Watt peak power handling / 60-Watt RMS power handling
• Frequency response: 34Hz – 1,5kHz
• Includes installation brackets for Sprinter 907 / 910 under-seat installation
• Measurements: 355 mm x 330 mm x 170 mm
• Sensitivity: 91dB 1W/1m
• Included subwoofer grill

Compatible Vehicles

•          Mercedes-Benz Sprinter 3 - (VS30) 907/910 - 2018 →
