Specifications

Power Handling

• Peak Power: 180 Watts
• RMS Power: 60 Watts

General

• Frequency response: 45Hz – 25kHz
• Impedance: 4 Ohms
• Sensitivity: 89dB 1W/W

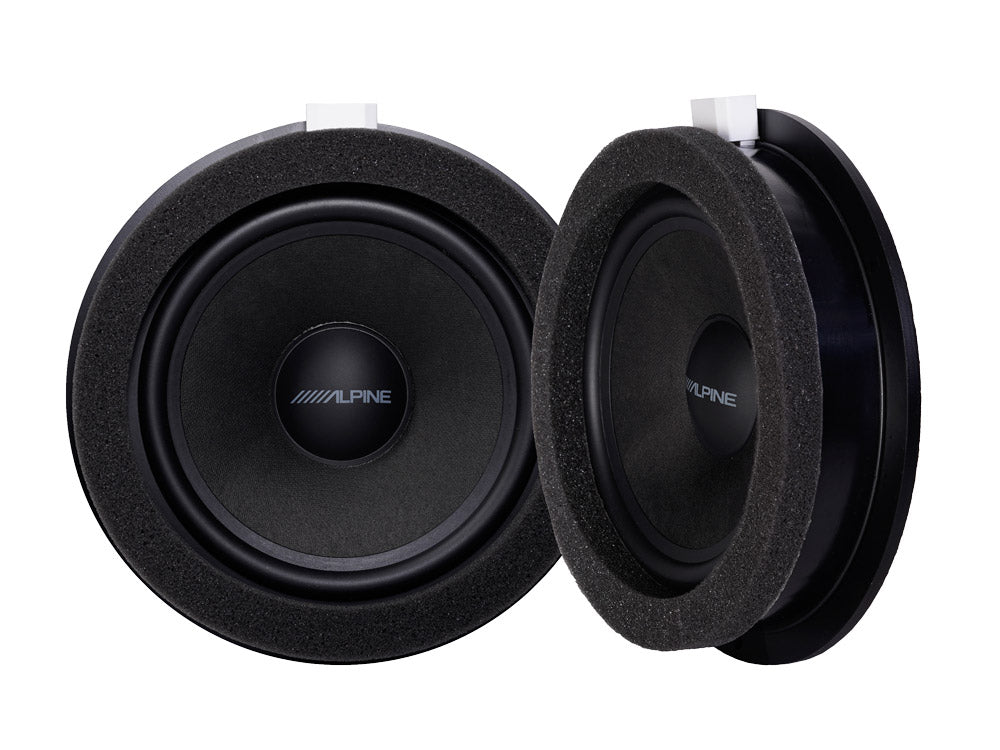

Mid-Range Woofer

• 166 mm mid-range door speaker
• Includes steel plates for solid door installation and adaptation to original door cut-out
• High quality steel basket and rubber surround
• 25 mm voice coil
• Large Ferrite magnet
• Includes foam seal ring
• For easy installation with original VW cable harness (original connectors)

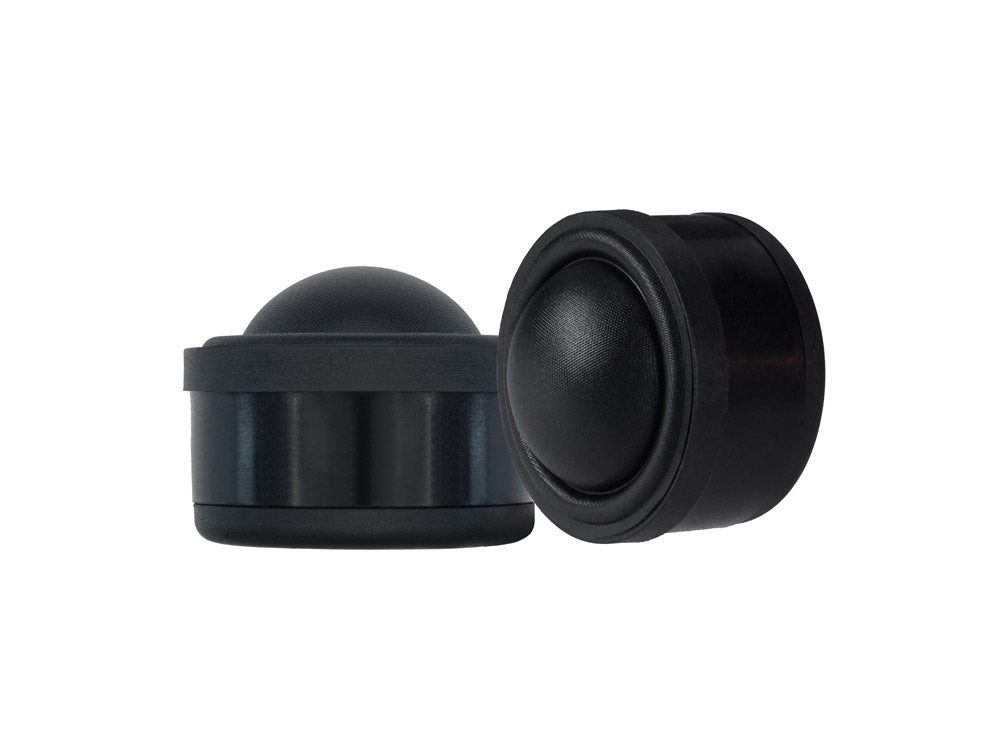

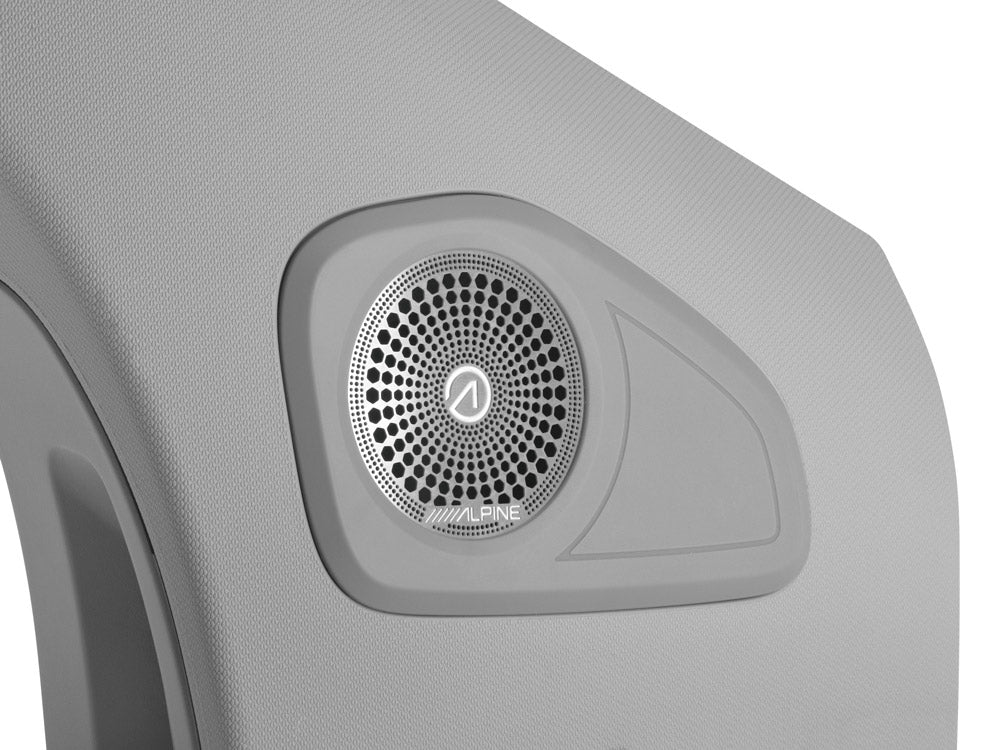

Tweeter

• 28 mm audiophile-grade back-chambered silk-dome tweeters
• Neodymium magnet
• Stainless steel tweeter grills (photo etched)
• Acoustically optimized tweeter installation brackets
• Integrate speaker network with foil condenser
