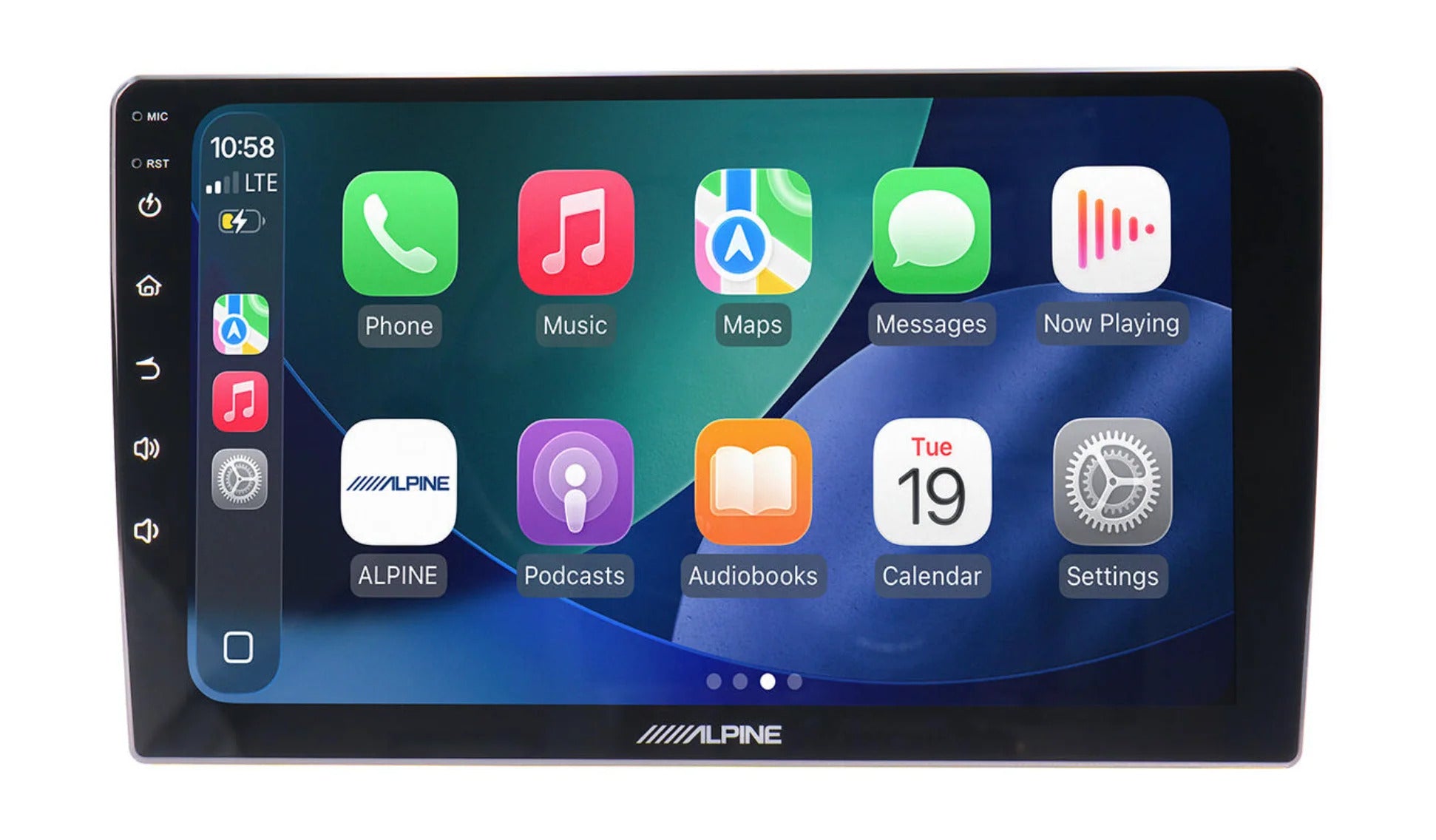

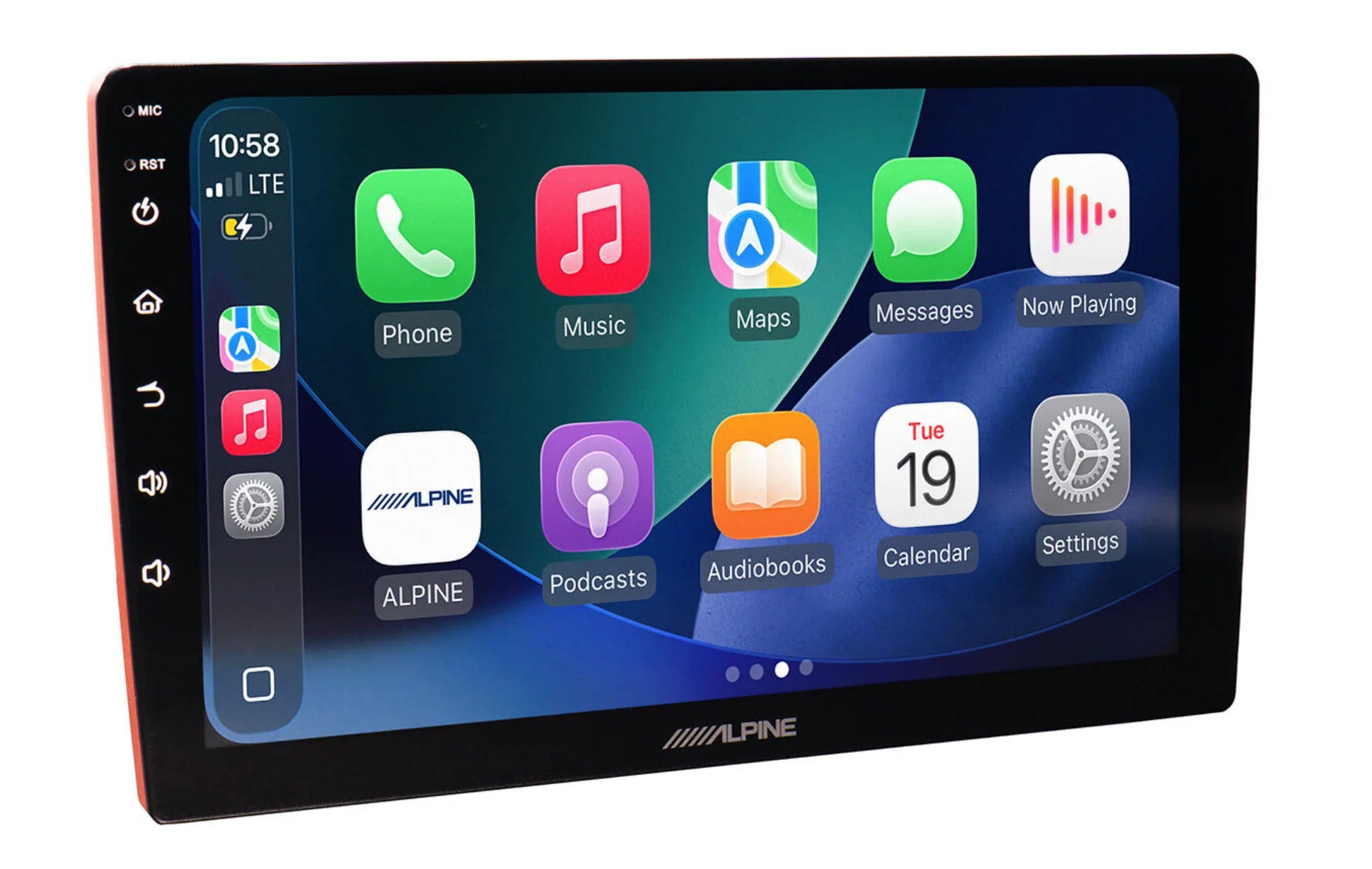

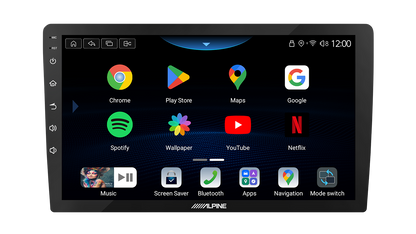

Transform your dashboard into a powerful multimedia and sound-control centre with the INE-AX809. Its 9-inch laminated WXGA HD touchscreen combines a sharp 1280 x 720-pixel image with smooth touch, drag, flick and pinch operation. A Snapdragon 8-core processor running at 2.0 GHz, 8 GB RAM, 256 GB internal memory and Android 13 provide fast, responsive performance for navigation, entertainment and connected applications.

Enjoy flexible media access through the Google Play Store, pre-loaded applications, two rear USB connections, wideband Bluetooth 5.0, Apple CarPlay and Android Auto. The editable home screen, 16 selectable background colours and menus in 22 languages let you tailor the interface to your vehicle and preferences, while HDMI, AHD, TVI and composite camera support opens up extensive integration possibilities.

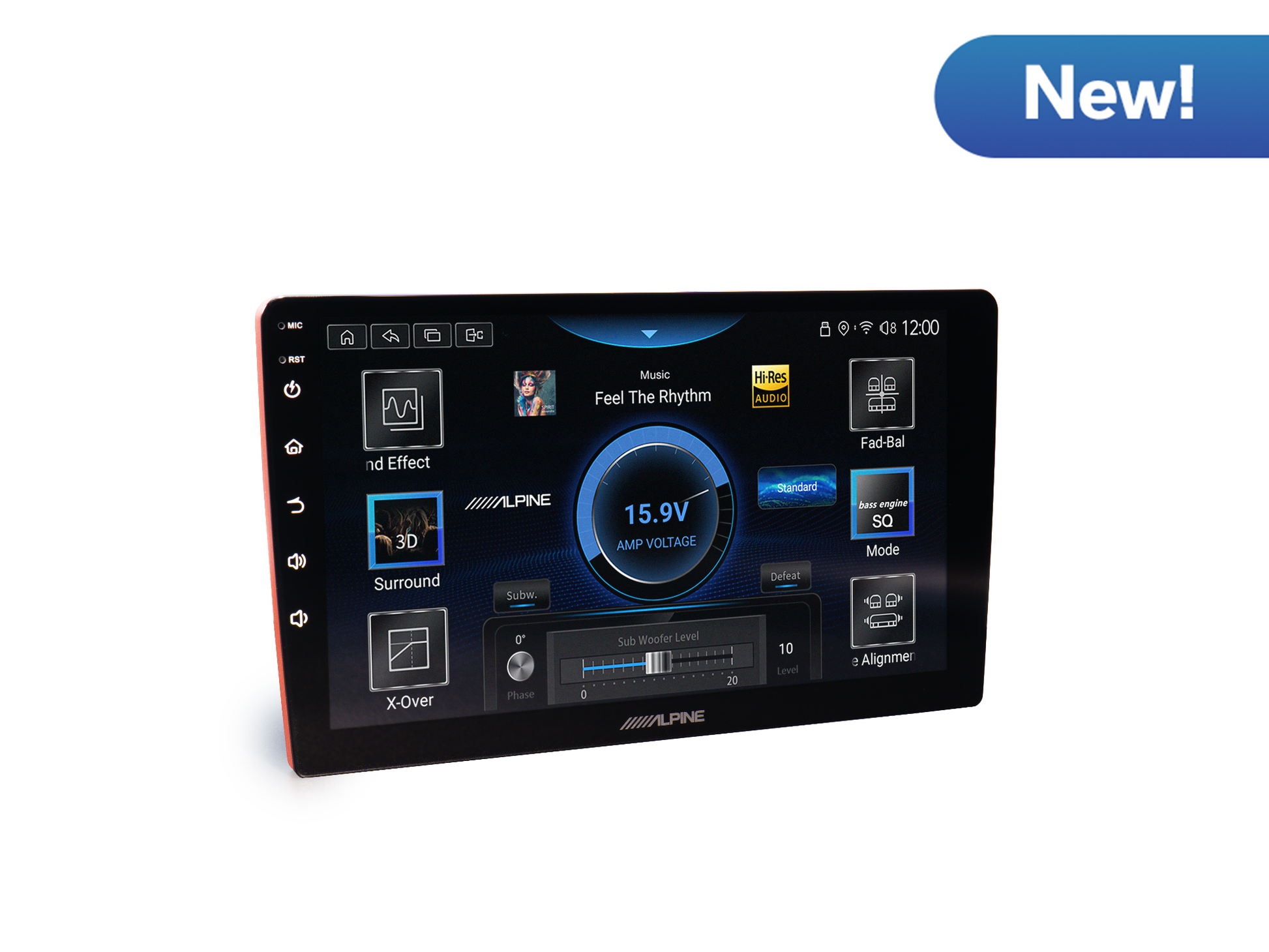

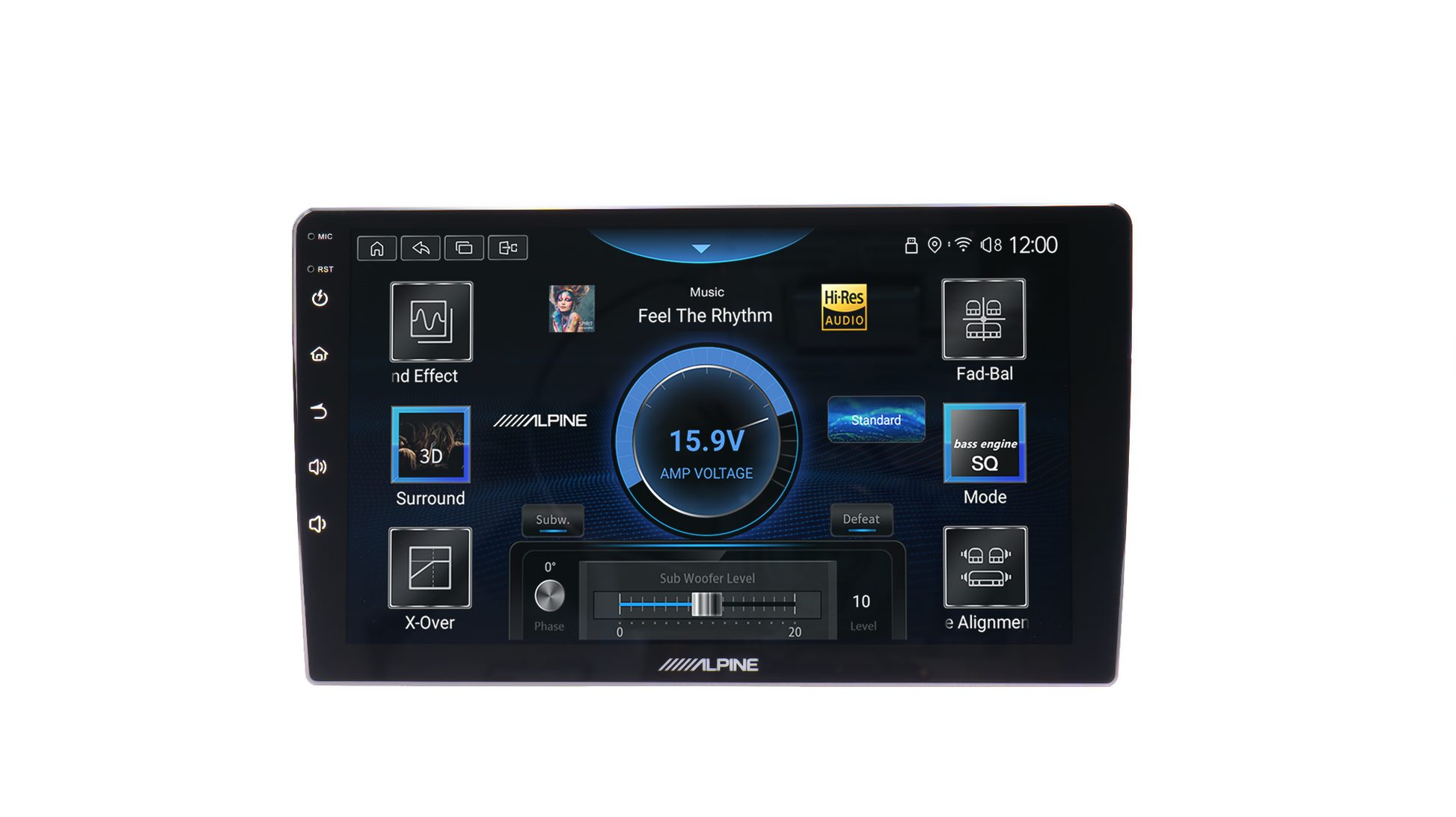

The INE-AX809 also puts advanced sound control at your fingertips. A built-in amplifier delivers up to 4 x 50 W, while three configurable pre-outs support front, rear, subwoofer or centre-channel system layouts. BASS ENGINE SQ, 3D Virtual Sound, 6-channel digital time correction, a 48-band parametric equaliser and comprehensive crossover settings give you the tools to build a detailed and immersive in-car listening experience.

FEATURES

GENERAL

• 9-inch Digital Media Station
• Android 13 operating system
• Snapdragon 8-core processor at 2.0 GHz
• 8 GB RAM
• 256 GB internal memory
• Google Play Store
• Menu available in 22 languages
• 16 adjustable screen-background colours and white touch buttons

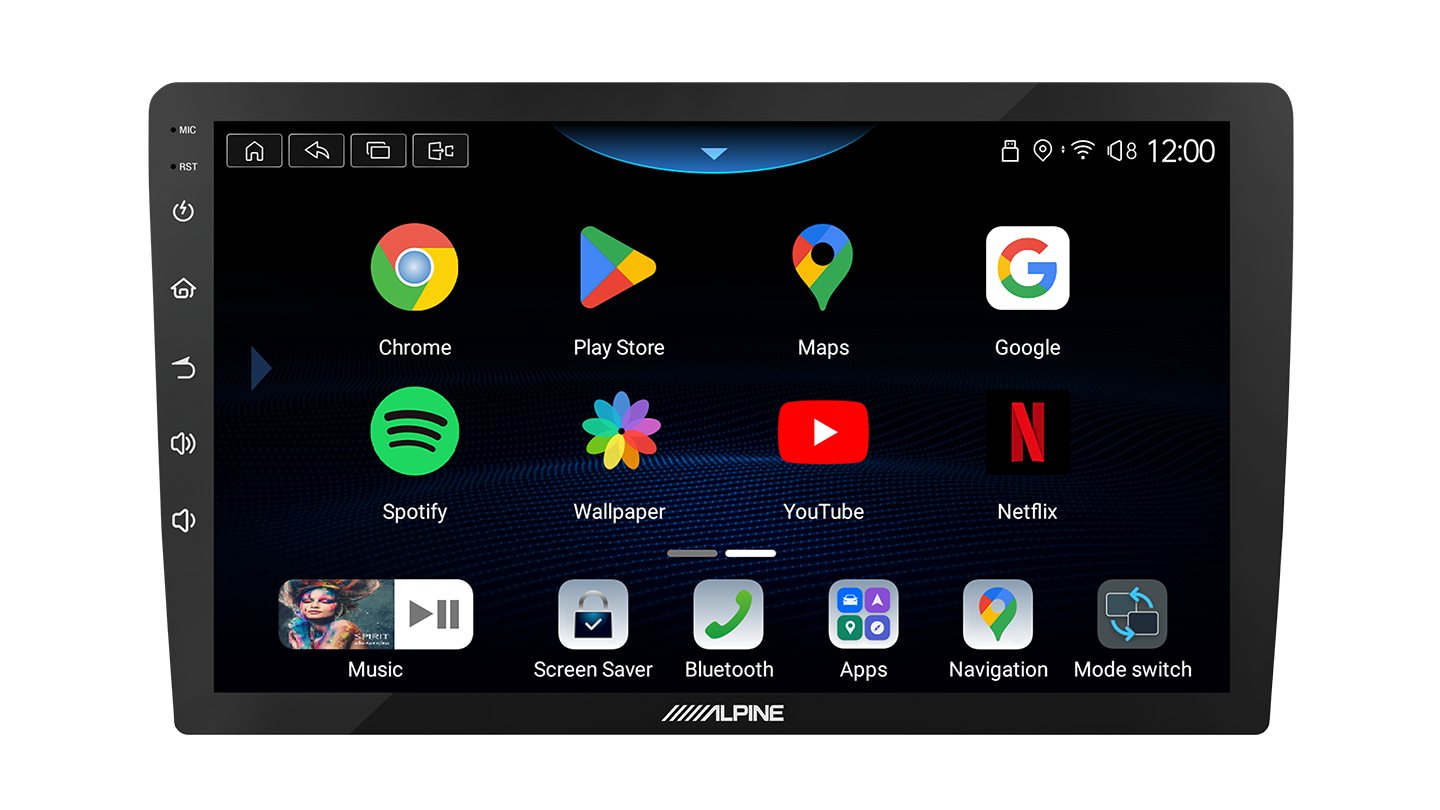

• Editable home screen with changeable source-menu widgets
• Steering wheel control ready; optional adapter may be required

DISPLAY

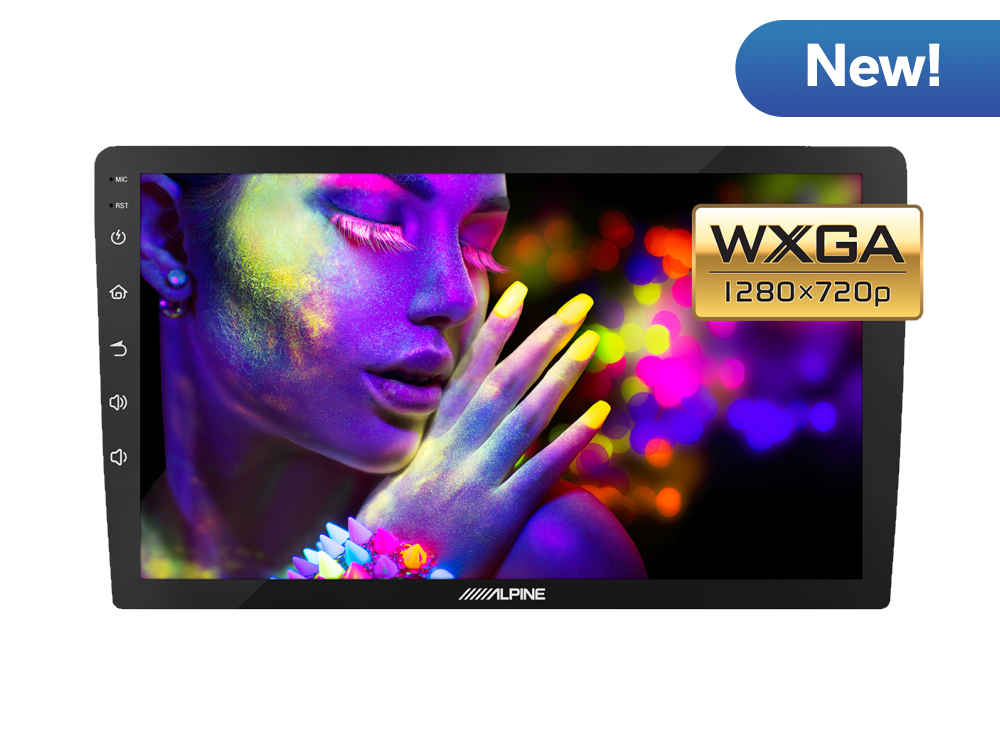

• 9-inch laminated touchscreen
• 1280 x 720-pixel WXGA HD resolution
• Touch, drag, flick and pinch operation

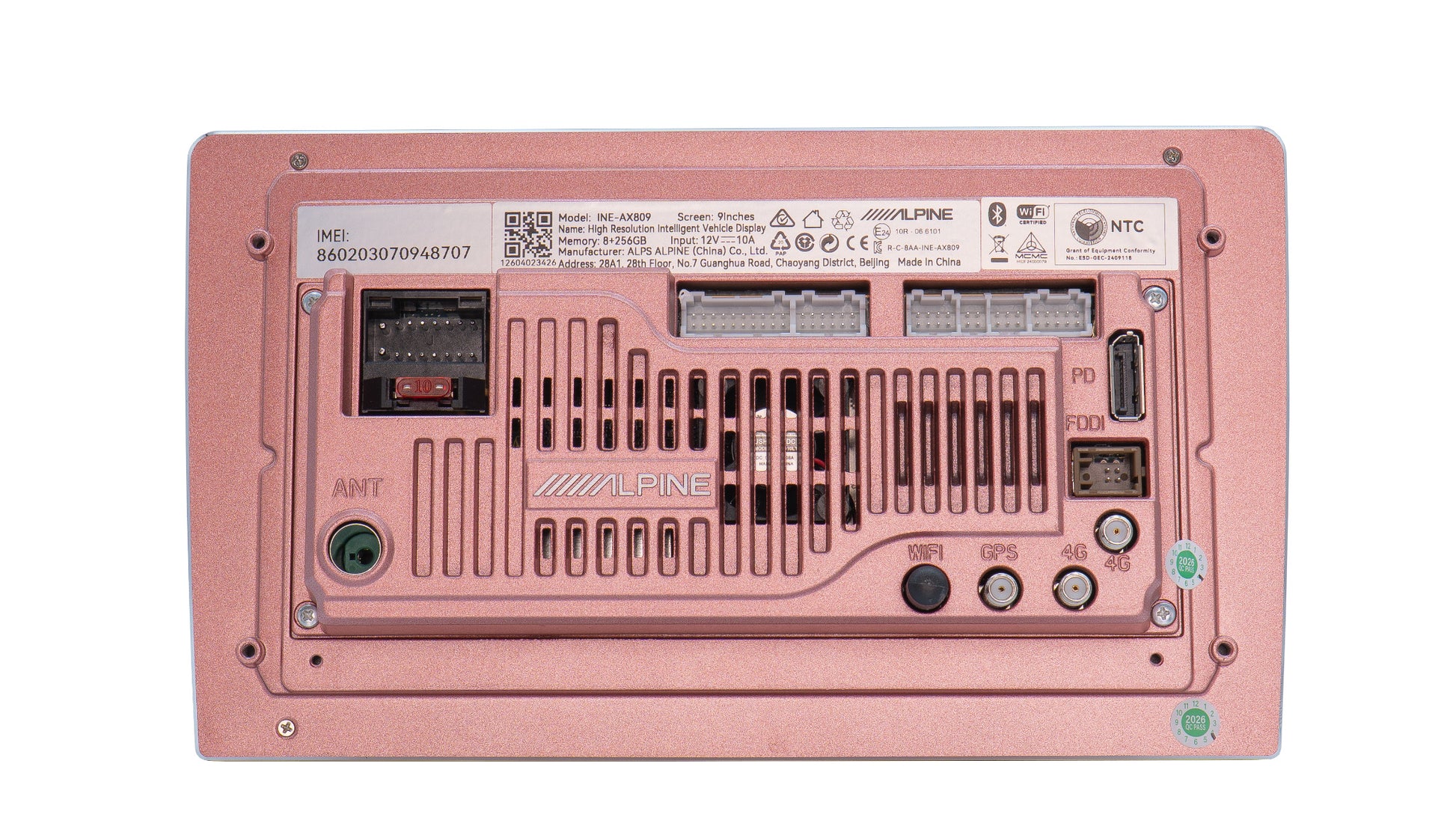

CONNECTIVITY

• Built-in Wi-Fi connectivity
• Integrated SIM card slot with 4G/LTE support for mobile internet access; availability and functionality depend on the network provider and installed applications

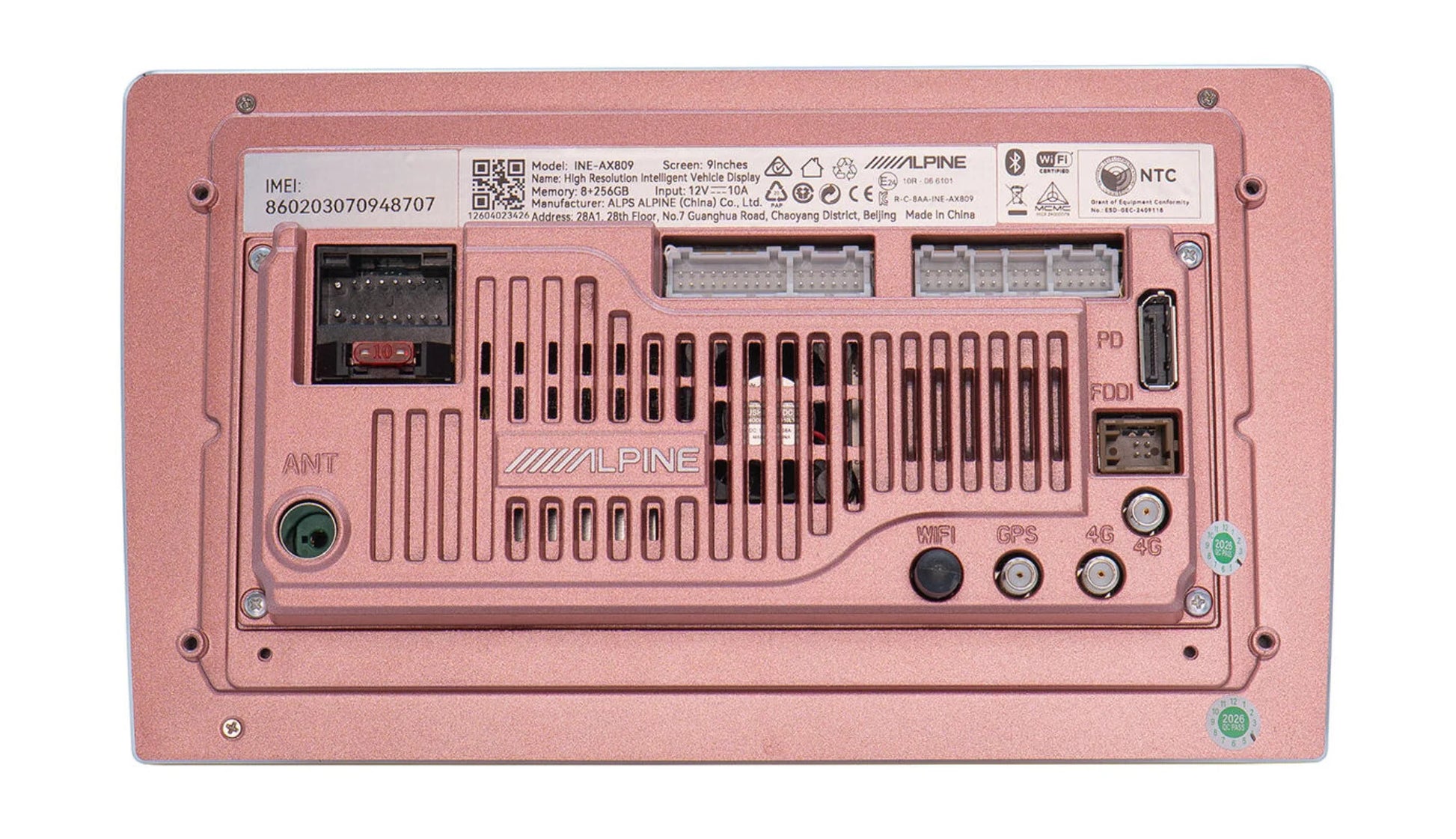

• Two rear USB connections
• Camera inputs: HDMI, AHD, TVI and composite

AUX input

• Built-in wideband Bluetooth 5.0 module
• Built-in microphone
• Hands-free calling

TUNER

RDS tuner with auto memory, TA, AF and EON

USB MEDIA

• USB audio: MPEG, WMA, WAV, OGG, FLAC, AAC, AMR and MID
• USB video: MPEG-1/2, MPEG-4, H.264 / AVC, MVC, H.265 / HEVC, VP8, H.263, VC-1 and MKV

BLUETOOTH

• Audio streaming with A2DP
• AVRCP 1.5 control

AUDIO OUTPUT

• Built-in amplifier: maximum output 4 x 50 W
• Three pre-outs: front, rear and subwoofer, or subwoofer and centre configuration

SOUND

• BASS ENGINE SQ with adjustable bass boost, Sound Focus and gain
• 6-channel digital time correction: 0 to 12.00 ms in 0.02 ms steps
• 3D Virtual Sound

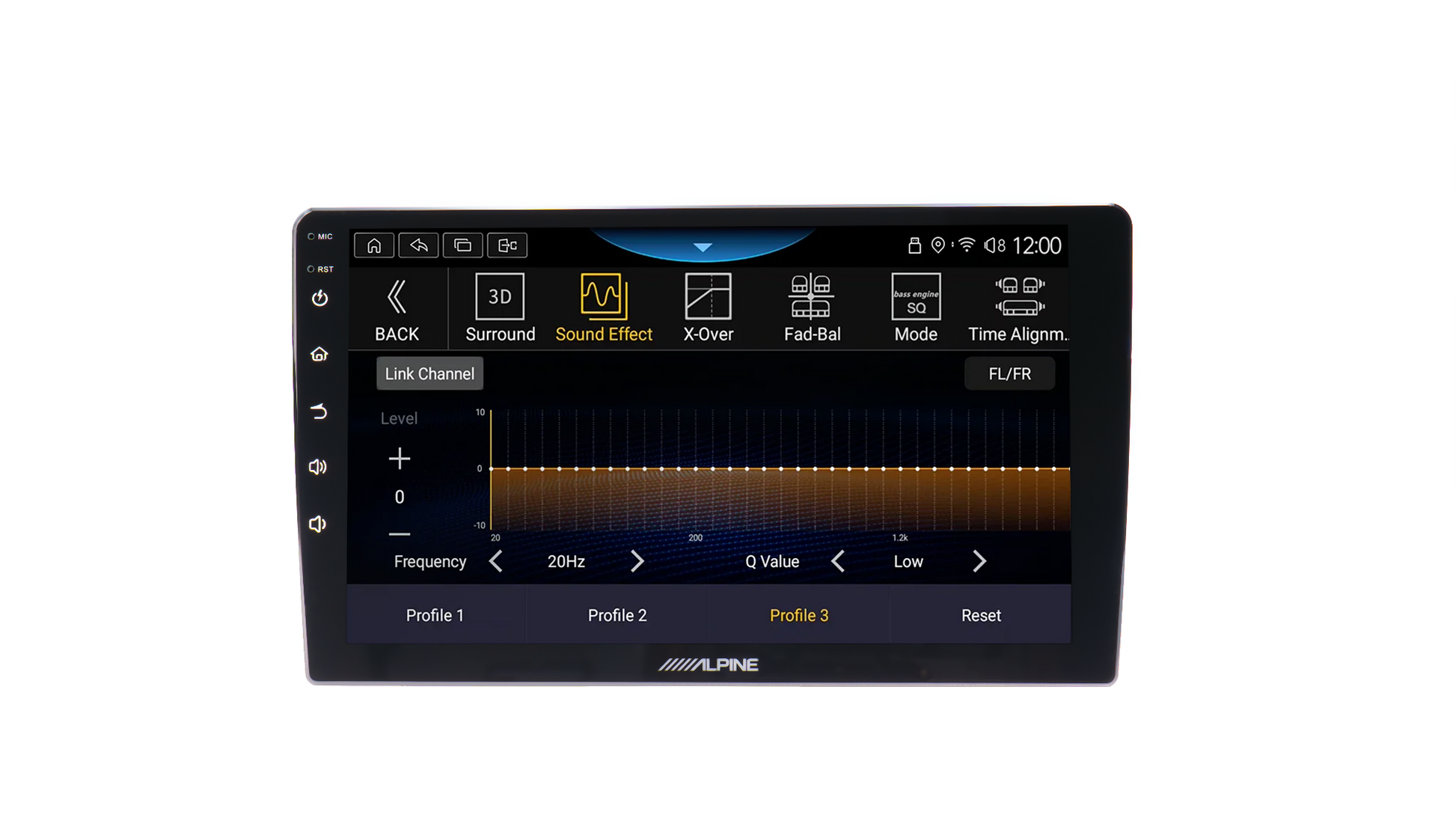

• 48-band parametric equaliser: ±10 dB, 20 Hz to 20 kHz
• Six independently adjustable 48-band EQ channels
• High-pass filters for front, rear and centre channels
• Low-pass filters for front, rear, centre and subwoofer channels
• Selectable filter slopes: off, 6, 12, 18, 24, 36 and 48 dB/oct.
• Subwoofer level adjustment: 0 to 15 dB
• Subwoofer phase setting: 0° / 180°

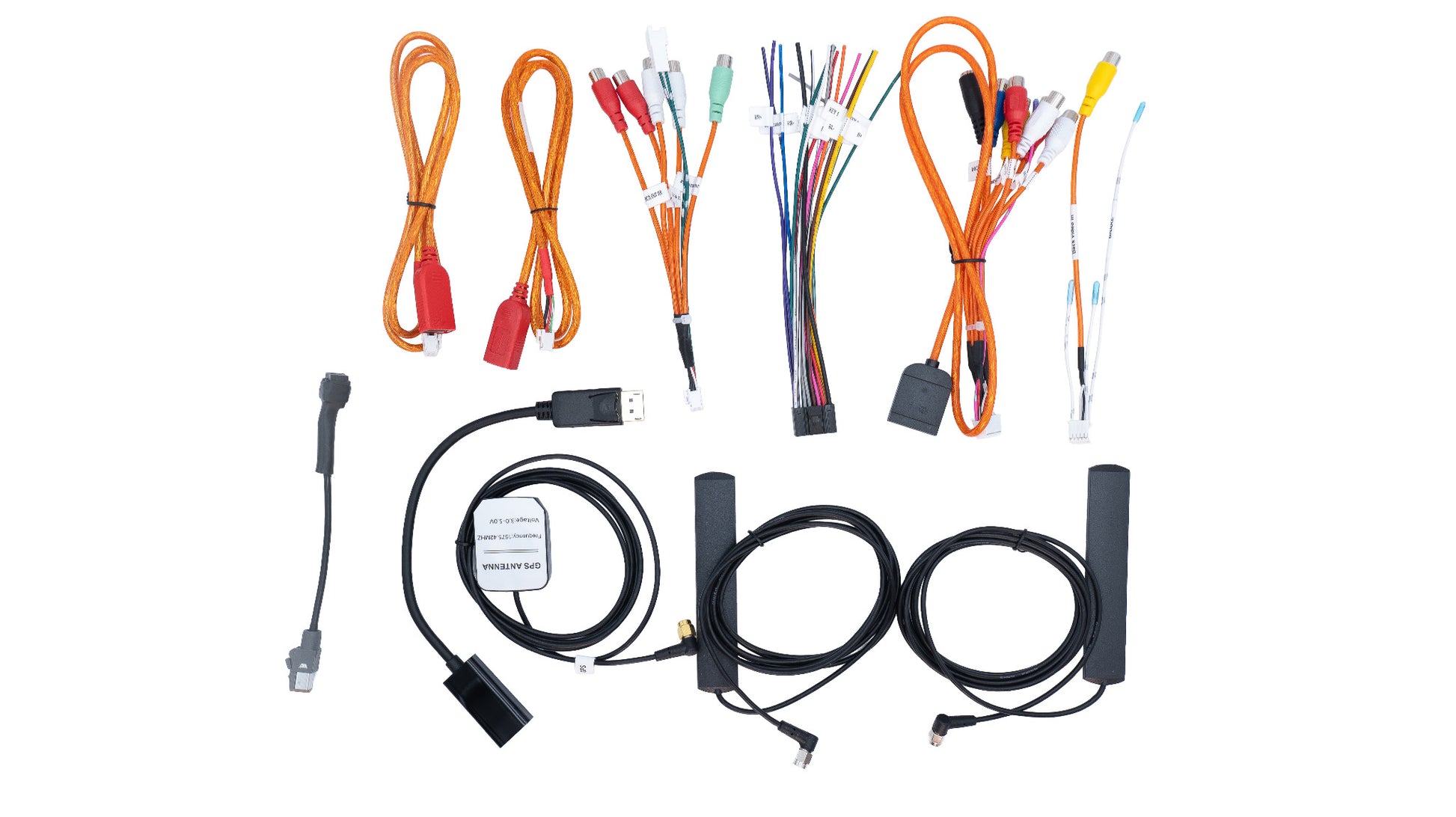

PACKAGE CONTENTS

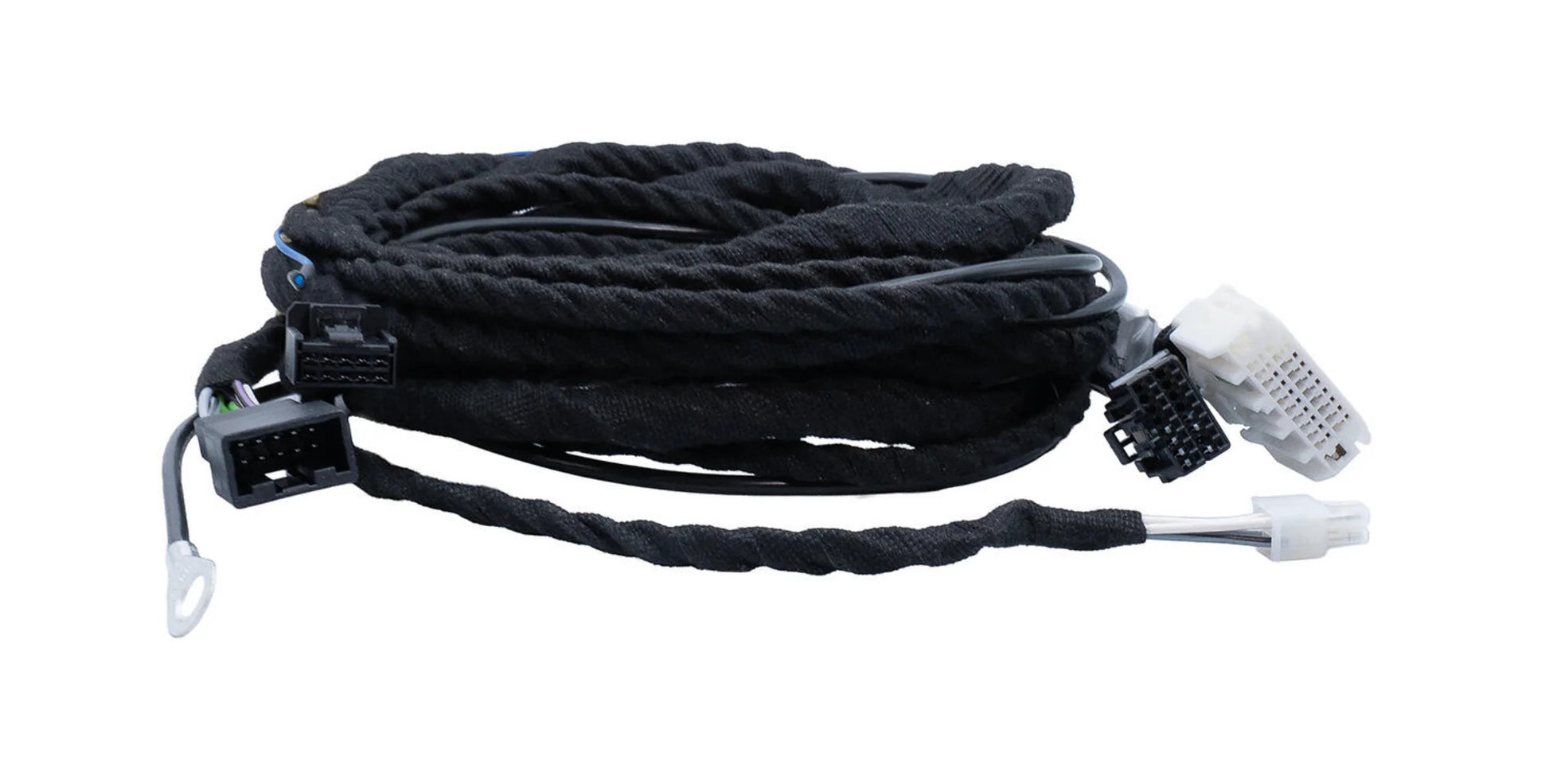

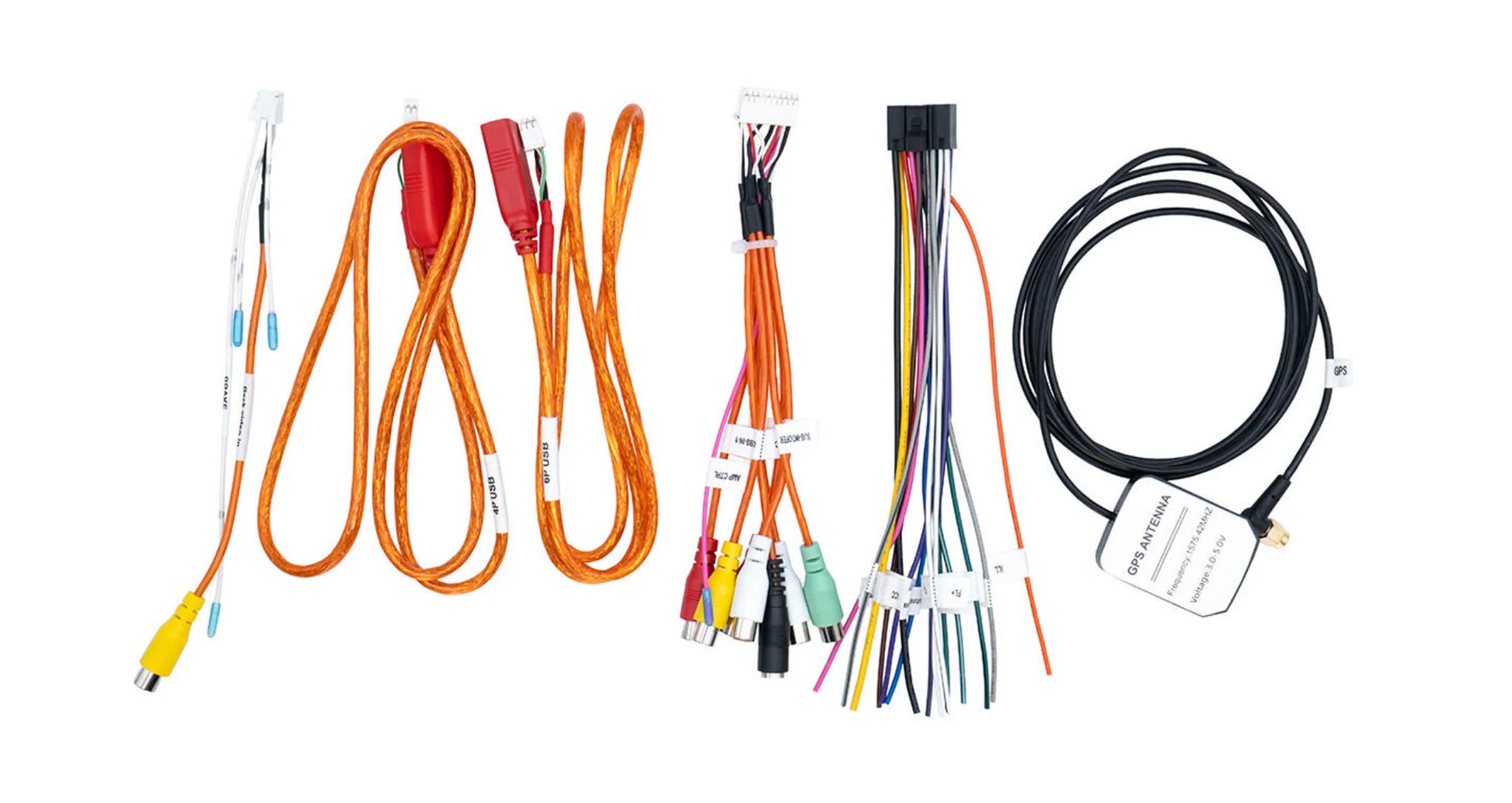

• Extension connection cables for camera, steering wheel control and other connections
• Two USB connection cables, each 1 metre long
• LTE antenna
• GPS antenna
• Optical output adapter
• DisplayPort / HDMI adapter
• SIM card adapter

GENERAL

• Weight: 1.4 kg
