Alpine HDZ-65CS - Status Hi-Res 6.5" 16.5cm 2-Way Slim-fit Component Car Speakers
Alpine HDZ-65CS - Status Hi-Res 6.5" 16.5cm 2-Way Slim-fit Component Car Speakers

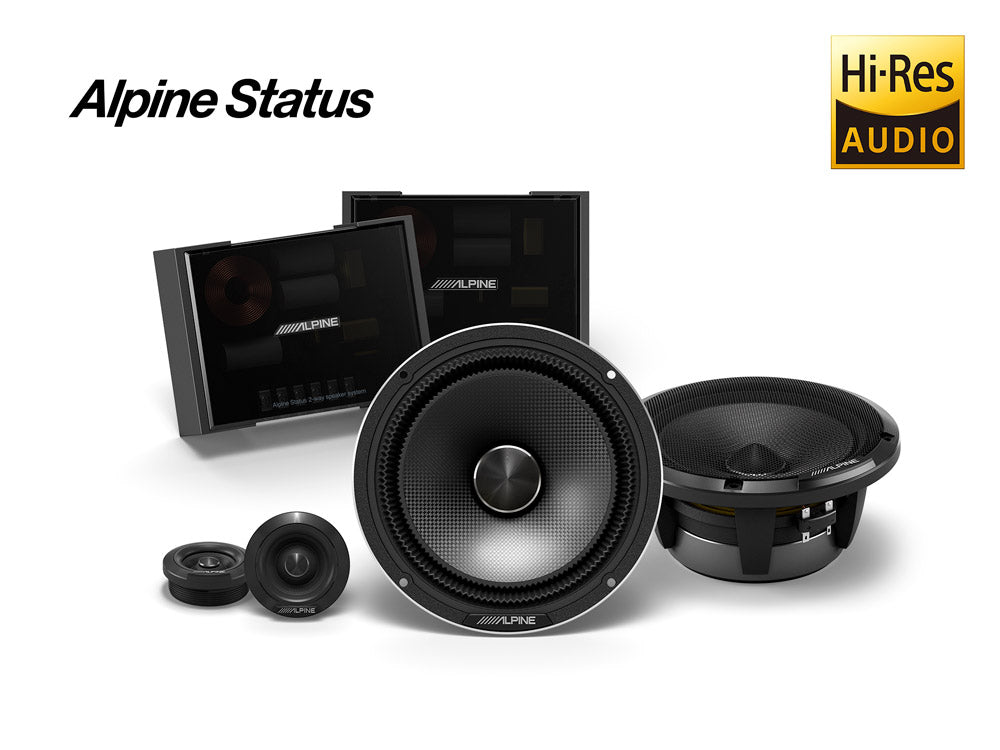

Slim-Fit 2-Way Speaker System
Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 2-way slim fit system consists of 170mm door woofers and 40mm Slim-Fit tweeters. They also include high-end X-over networks in the set.
Product Description
Features
- Hi-Res Audio certified 3-Way speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts

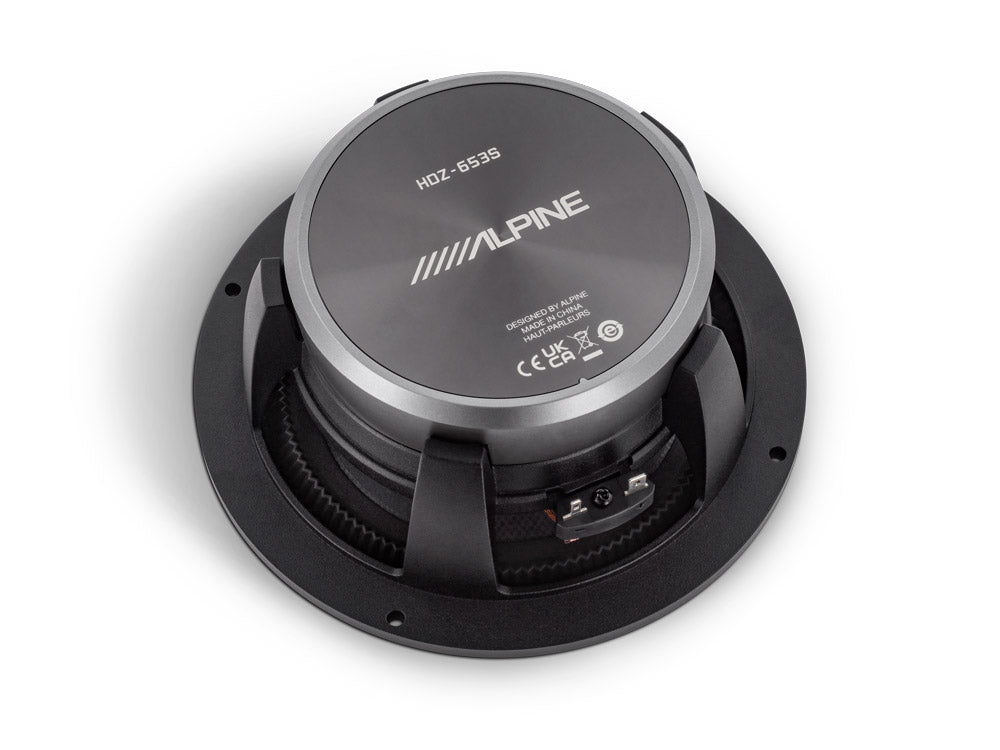

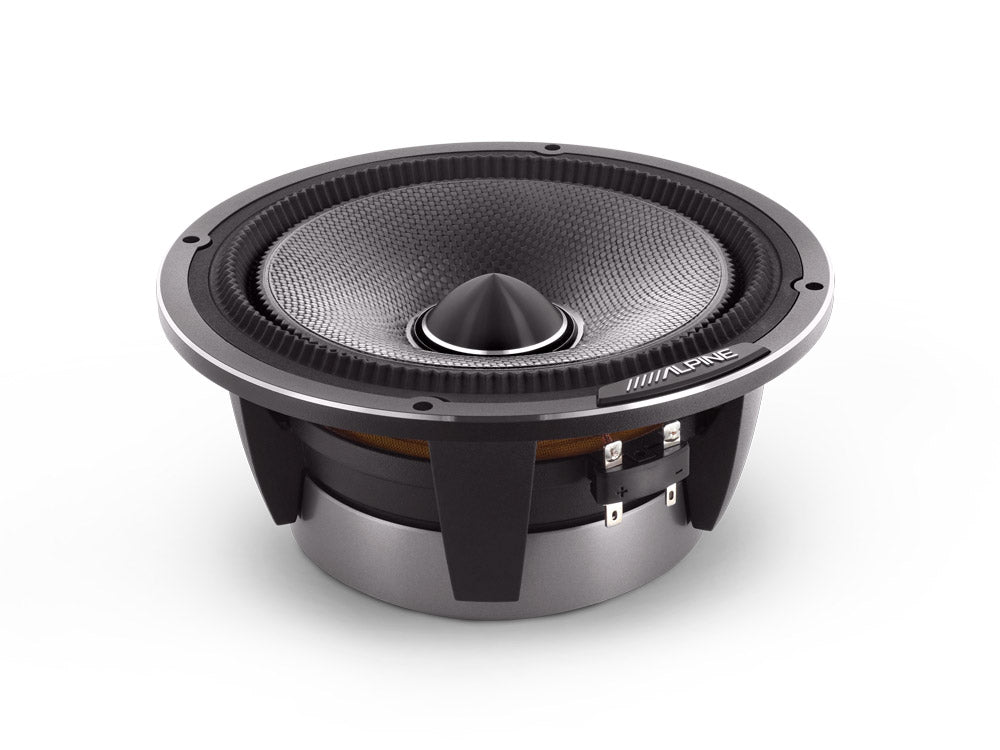

- Woofer diameter: 170mm (177mm with attached grill)

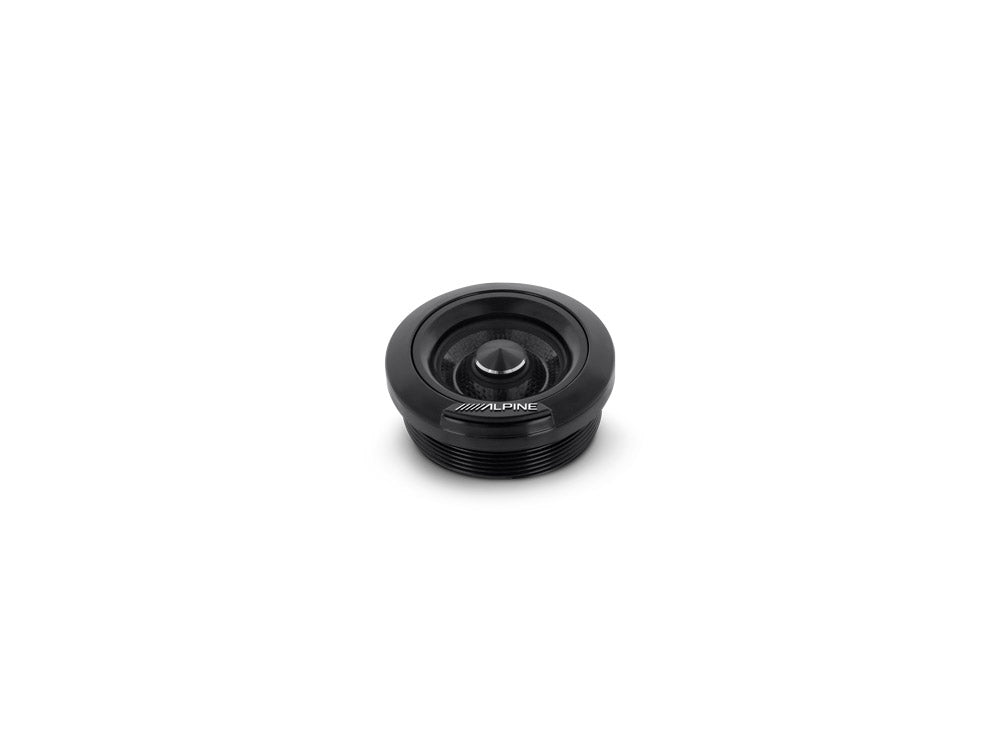

- Tweeter diameter (slim-fit): 40mm (58mm with housing)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge

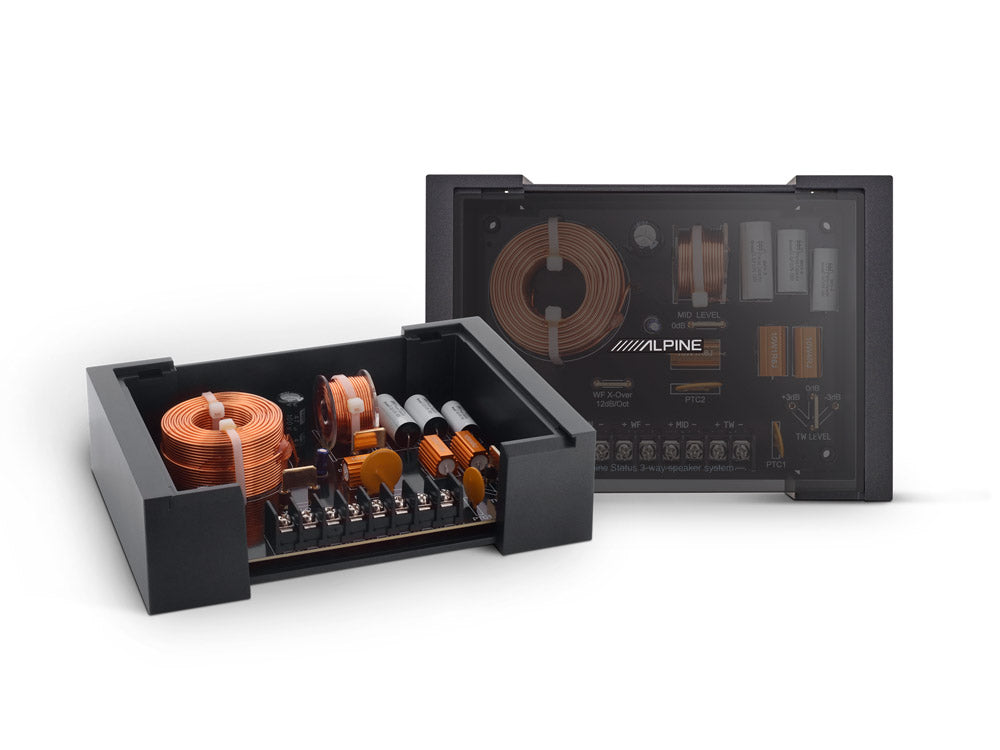

- High-end X-Over networks
- Included speaker grills
- Integrated Wave Guide on all speakers
Specifications
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz – 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
Thiele & Small Parameters Door Woofer:
- Re: 3.58 Ohm
- fs: 62 Hz
- Mms: 18.341 g
- Rms: 1.436 kg/s
- Cms: 0.359 mm/N
- BI: 6.407 N/A
- Qms: 4,979
- Qes: 0,624
- Qts: 0,554
- Vas: 8.9526 l
- Sd: 132.73 cm2
