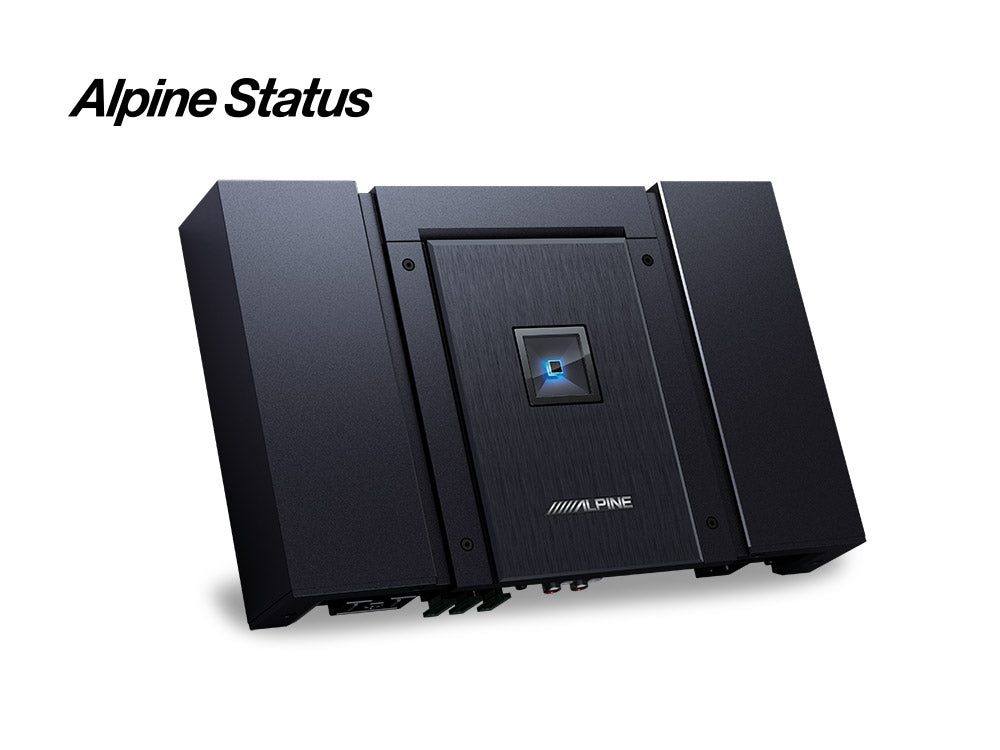

Alpine HDA-M80 - Status Class-D Mono Power Amplifier
Alpine HDA-M80 - Status Class-D Mono Power Amplifier
Superior Sound Performance

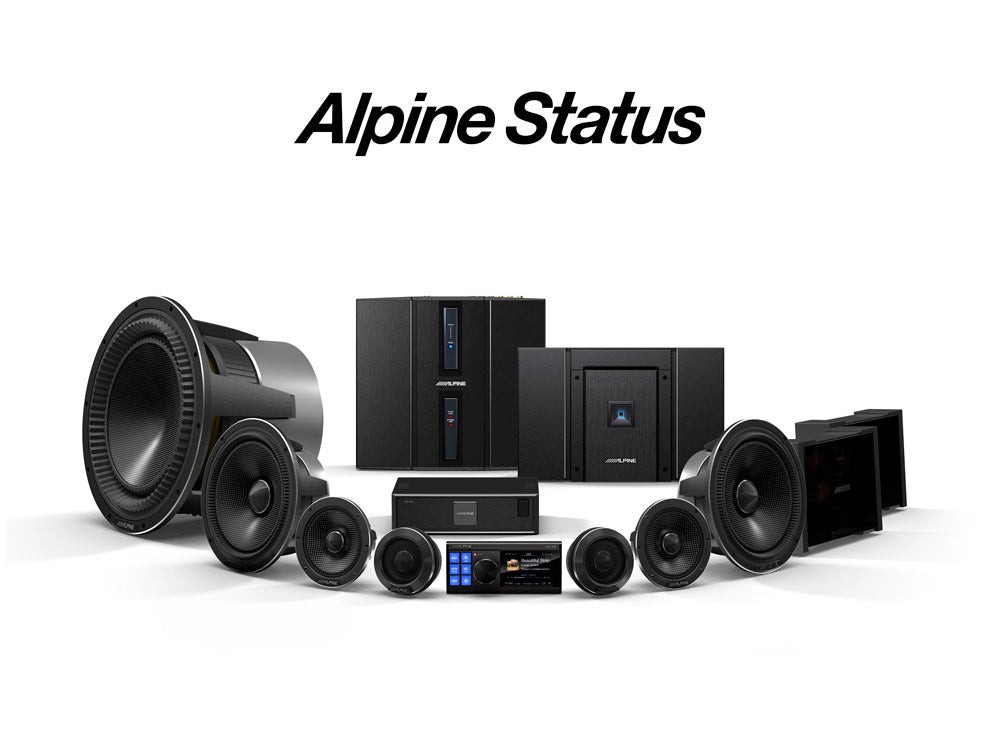

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extreme flexible: all components can be purchased and used in “stand-alone” configuration.
Product Description
Features
General
- Channel Design: Mono
- Class-D amplification circuit
- Power supply and speaker channel connectors
- Copper-plated chassis

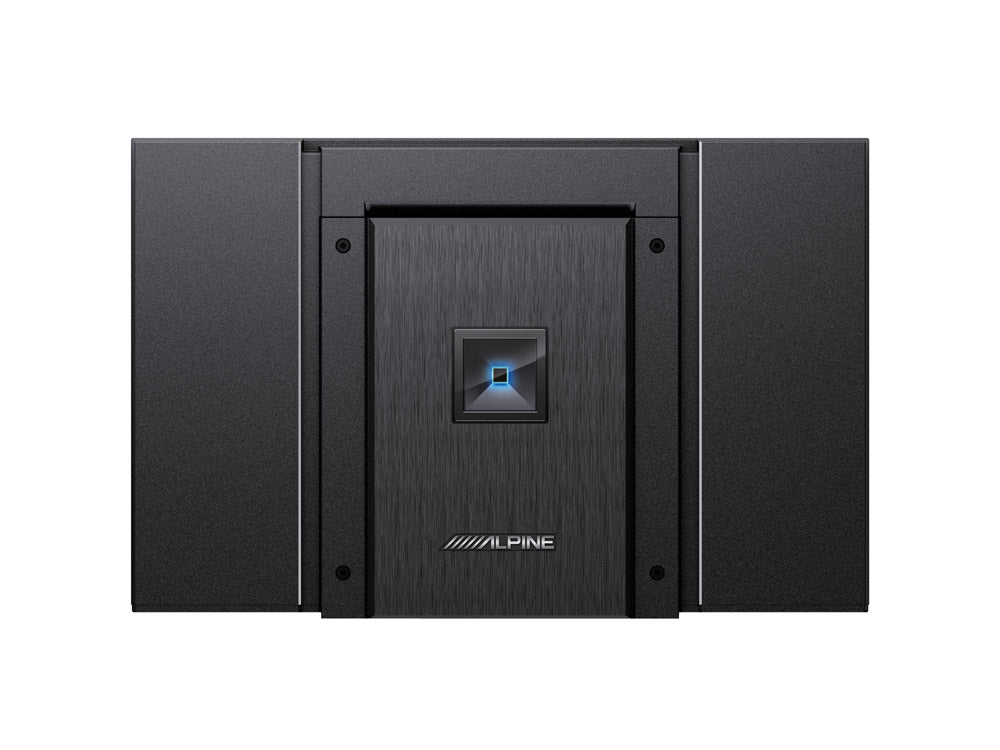

- Top control panel (below top cover)
- Black circuit board
- Non-Shutdown design
- Thermal Protection

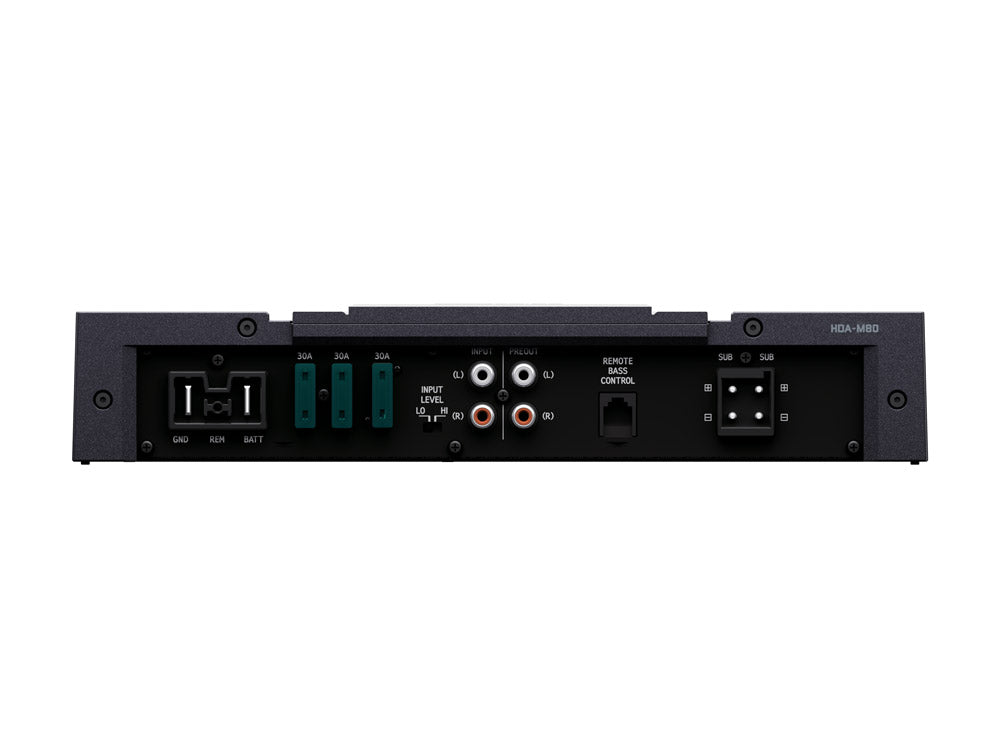

- One-sided terminal
- Blue power LED
- Compatible with RUX-KNOB2 bass controller
Specifications
- RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V: 1 x 800W
- Per Channel into 4 Ohms, 14.4V: 1 x 500W
- Sound Tuning
- Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct)
- Crossover: Variable LPF: 50-400Hz (-24dB/oct )
- Equalizer (Bass EQ): 0-12dB (fc=50Hz)
General
- Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V
- Frequency Response (+0/ -3dB: 1W into 4 Ohms): 8Hz – 400Hz
- THD+N (10W into 4 ohms): ≤0.02%
- Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >1500
- Preamp Output (CH-1/2 Input Pass-through, Buffered): 4V max
- Weight: 3.7kg
- Dimensions:
- Width 291 mm
- Height 53.5 mm
- Depth 189.5 mm
