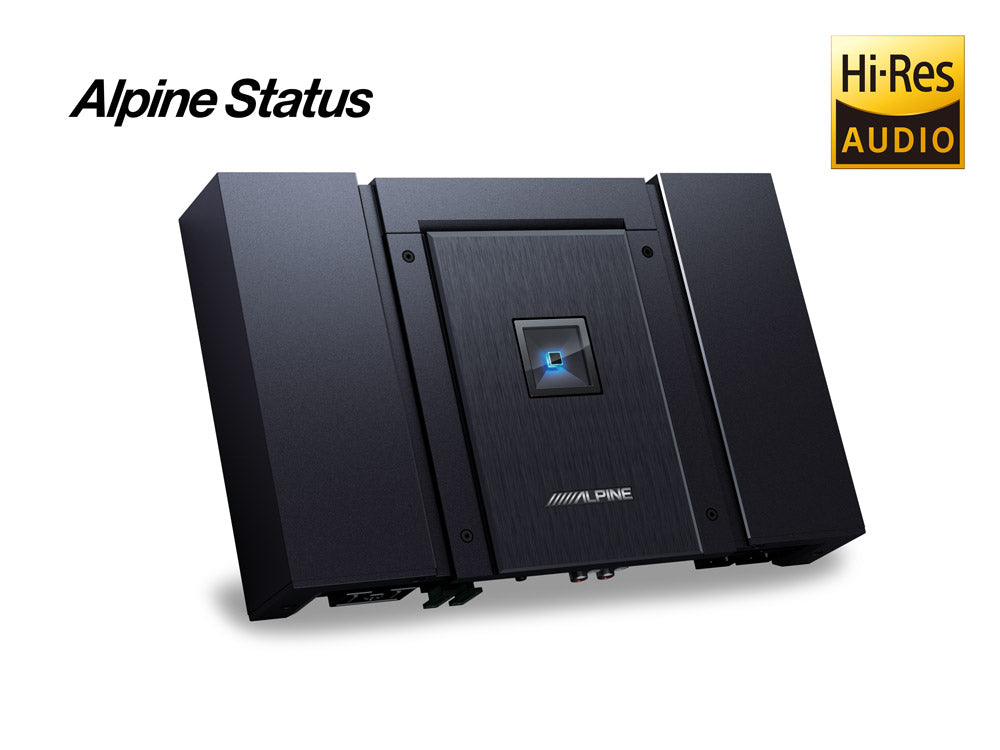

Class-D 4-Channel Amplifier
The HDA-F60 4-Channel Power Amplifier features a Class-D amplification circuit with Sierra-H technology (see below for more details on Sierra-H). It features an RMS power output of 4x 100 Watts @ 4Ohm, 4x 150 Watts @ 2Ohm or 2x 300W @ 4Ohm bridged and a frequency response of 10Hz to 60kHz.
Product Description
General
- Channel Design: 4/3/2 Channel
- Class-D amplification circuit

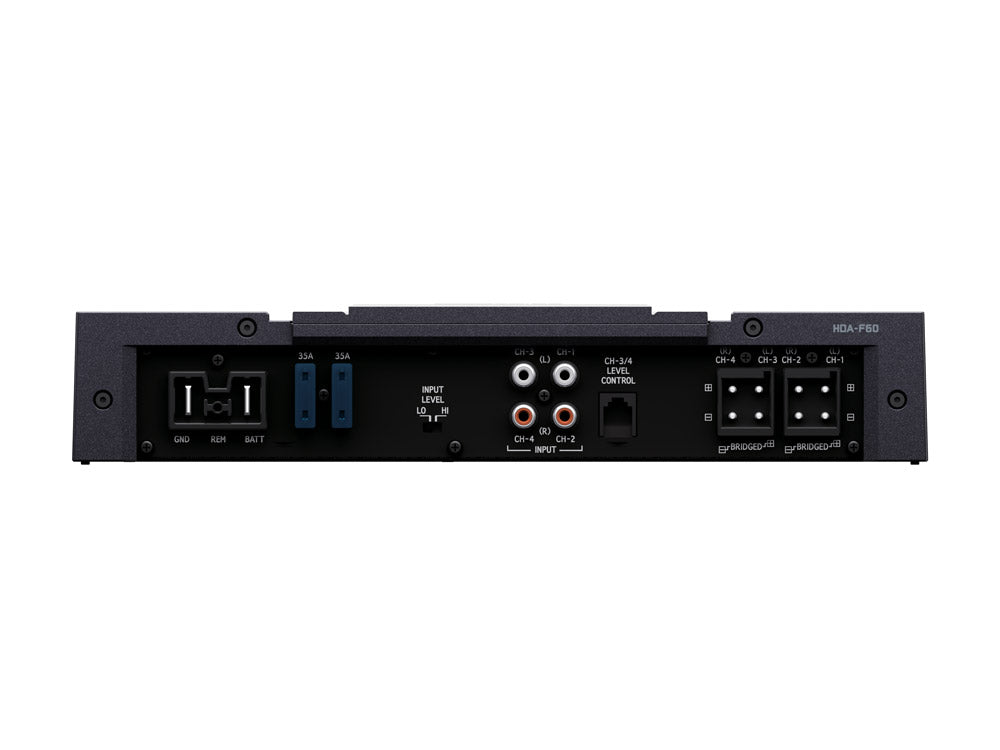

- Power supply and speaker channel connectors
- Copper-plated chassis

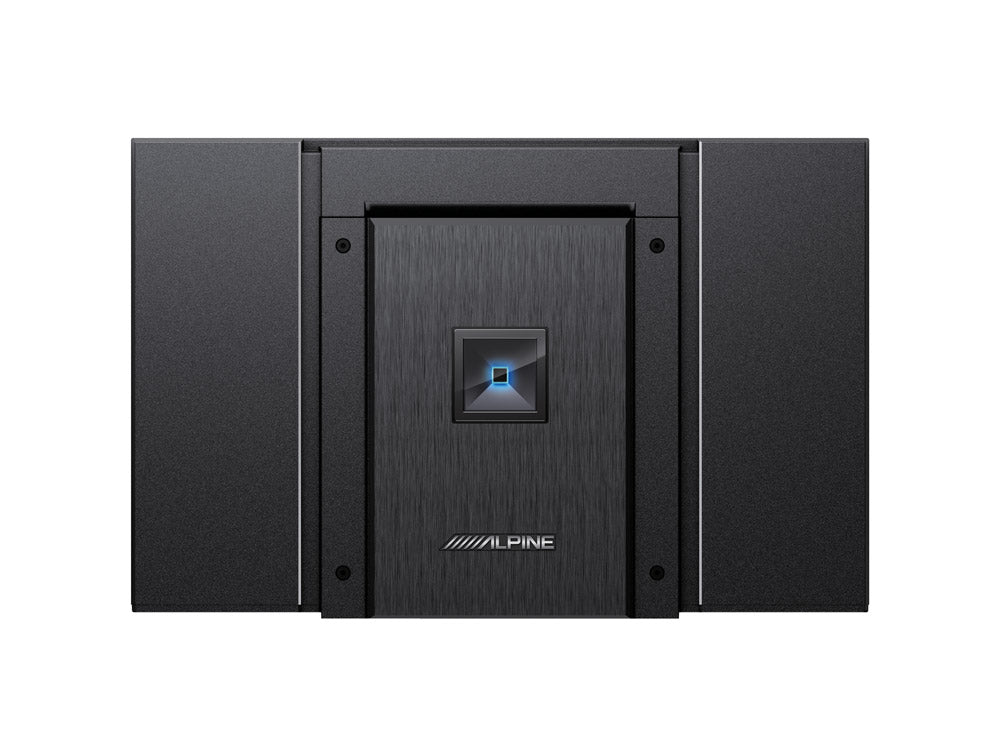

- Top control panel (below top cover)
- Black circuit board
- Non-Shutdown design
- Thermal Protection
- One-sided terminal
- Blue power LED
- Compatible with RUX-KNOB2 bass controller
Specifications
- RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V: 4 x 150W
- Per Channel into 4 Ohms, 14.4V: 4 x 100W
- Bridged into 4 Ohms, 14.4V: 2 x 300W
- Sound Tuning
- Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
General
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 60kHz
- THD+N (@ 10W into 4 Ohms): <0.02%
- Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >500
- Weight: 3.8kg
Dimensions:
- Width 291 mm
- Height 53.5 mm
- Depth 189.5 mm
